Connector End Views - Charging System

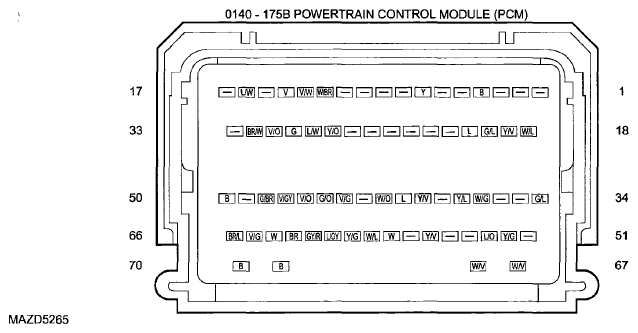

Fig 1: Identifying 0140 - 175B Powertrain Control Module (PCM) Connectors

Courtesy of MAZDA MOTORS CORP.

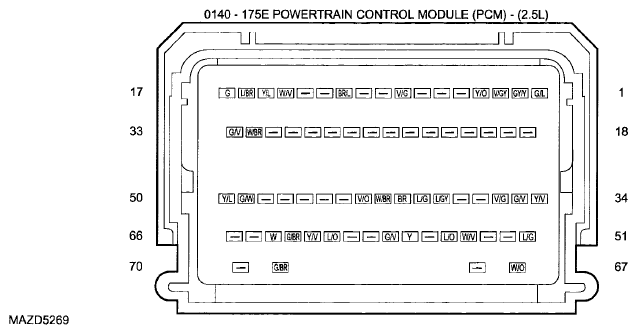

Fig 2: Identifying 0140 - 175E Powertrain Control Module (PCM) - (2.5L) Connectors

Courtesy of MAZDA MOTORS CORP.

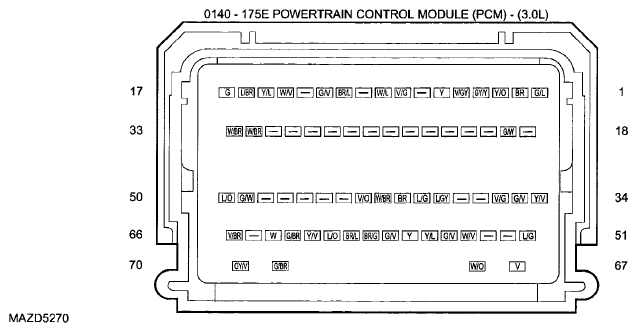

Fig 3: Identifying 0140 - 175E Powertrain Control Module (PCM) - (2.0L) Connectors

Courtesy of MAZDA MOTORS CORP.

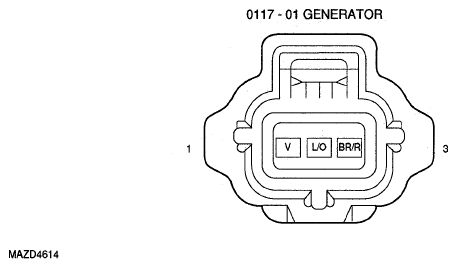

Fig 4: Identifying 0117 - 01 Generator Connectors

Courtesy of MAZDA MOTORS CORP.

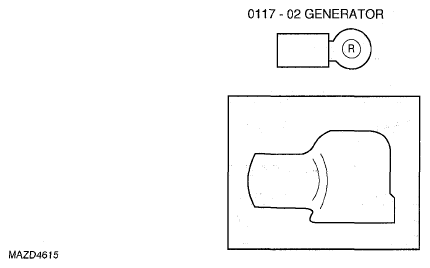

Fig 5: Identifying 0117 - 02 Generator Connectors

Courtesy of MAZDA MOTORS CORP.
