Fuel System - Non-Hybrid
>>
Fuel Tank And Fuel Filler Pipe - Exploded View
>>
Fuel Tank And Fuel Pump (FP) Module
Fuel Tank And Fuel Pump (FP) Module

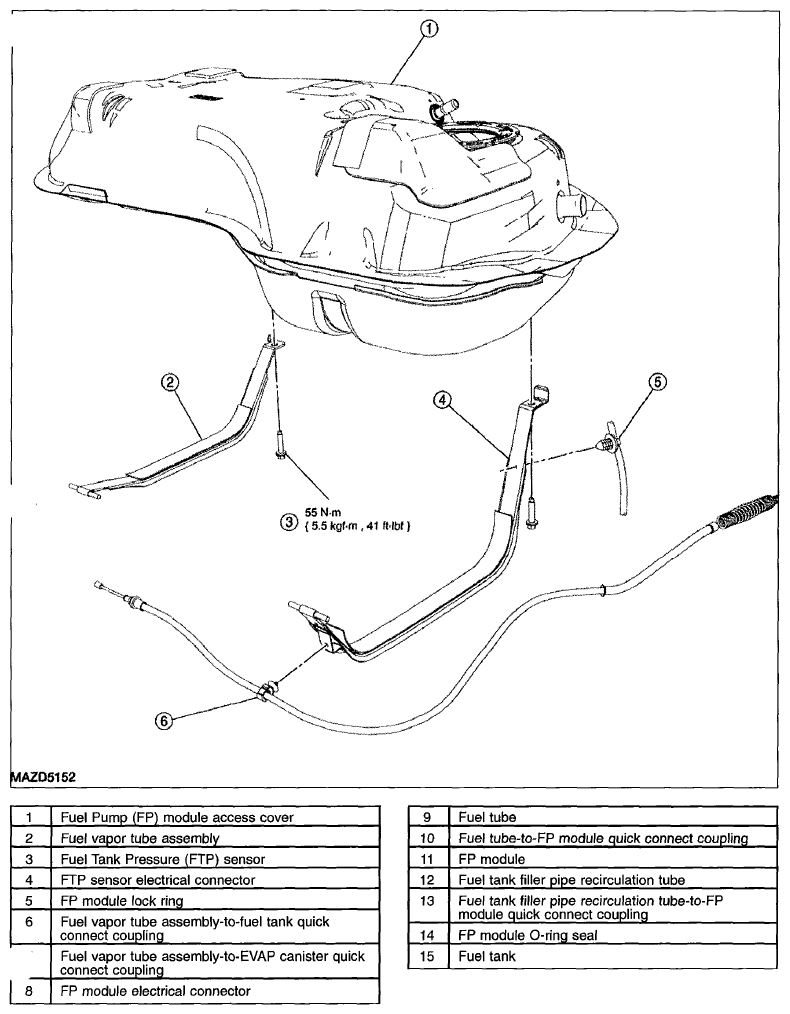

Fig 1: View Of Fuel Tank And Fuel Pump (FP) Module
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
