Transaxle Support Insulator - Lower, Front Removal/Installation: Notes

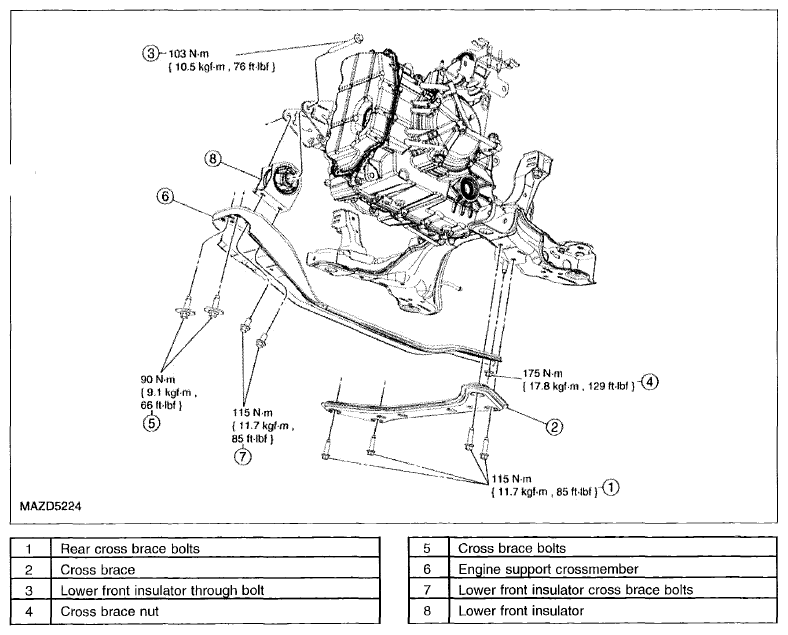

Fig 1: Identifying Transaxle Support Insulator Components (Lower, Front)

G06158169

Courtesy of MAZDA MOTORS CORP.
