Solenoid Body Assembly: Notes

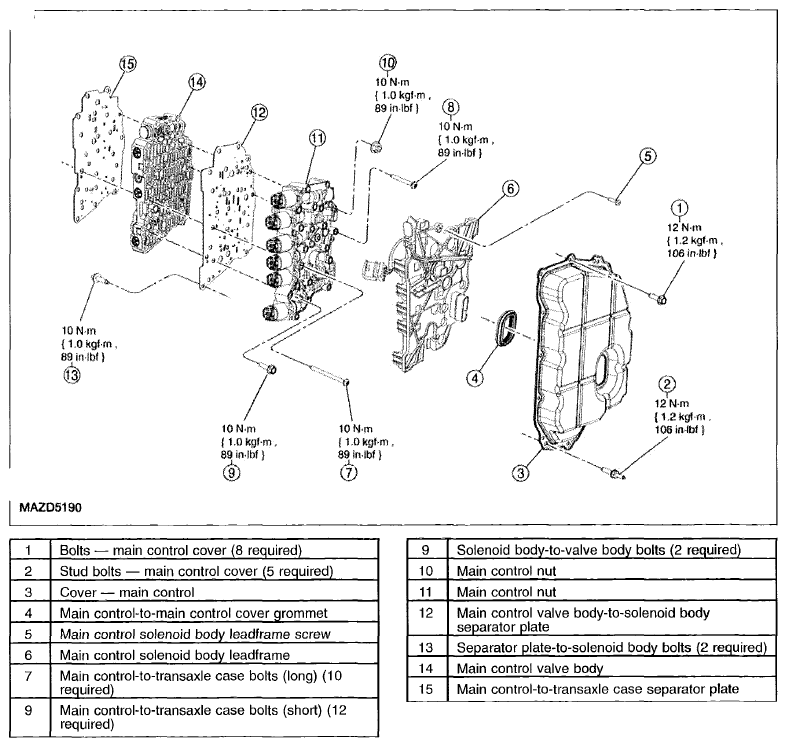

Fig 1: Identifying Solenoid Body Assembly Components

G06158123

Courtesy of MAZDA MOTORS CORP.
