Solenoid Body Assembly Disassembly/Assembly: Notes

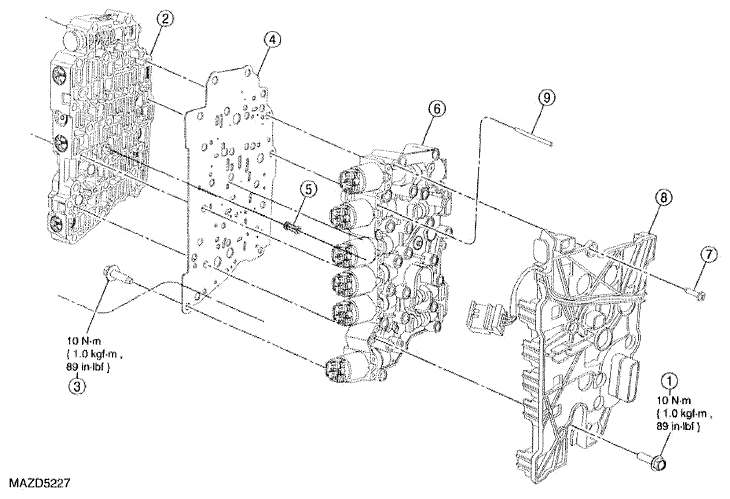

Fig 1: Disassembled View Of Solenoid Body Assembly
G06158387Courtesy of MAZDA MOTORS CORP.

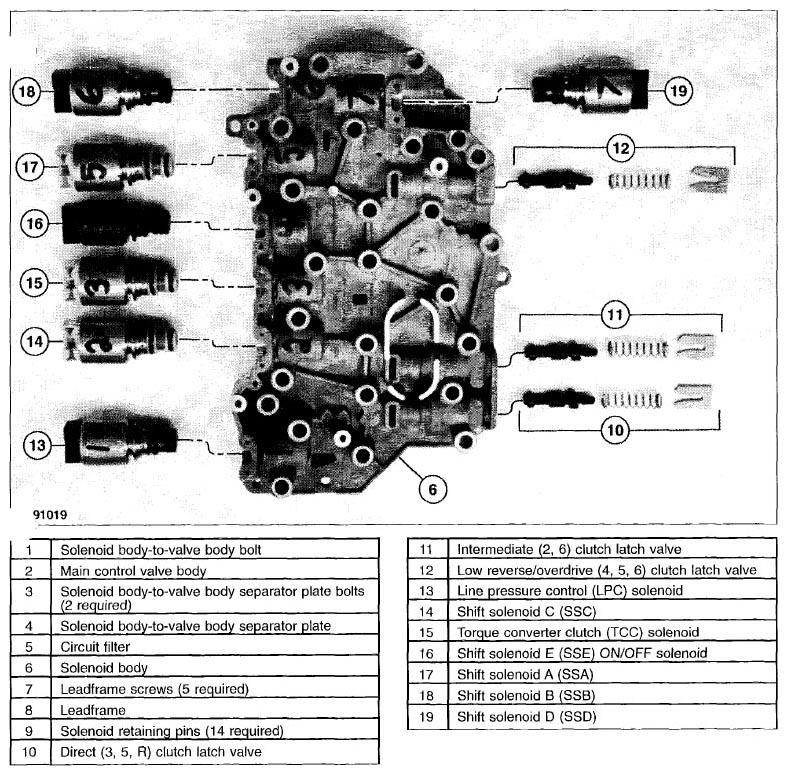

Fig 2: Identifying Solenoid Body Assembly Components
G06158388Courtesy of MAZDA MOTORS CORP.
