Pump Assembly Disassembly/Assembly: Disassembly

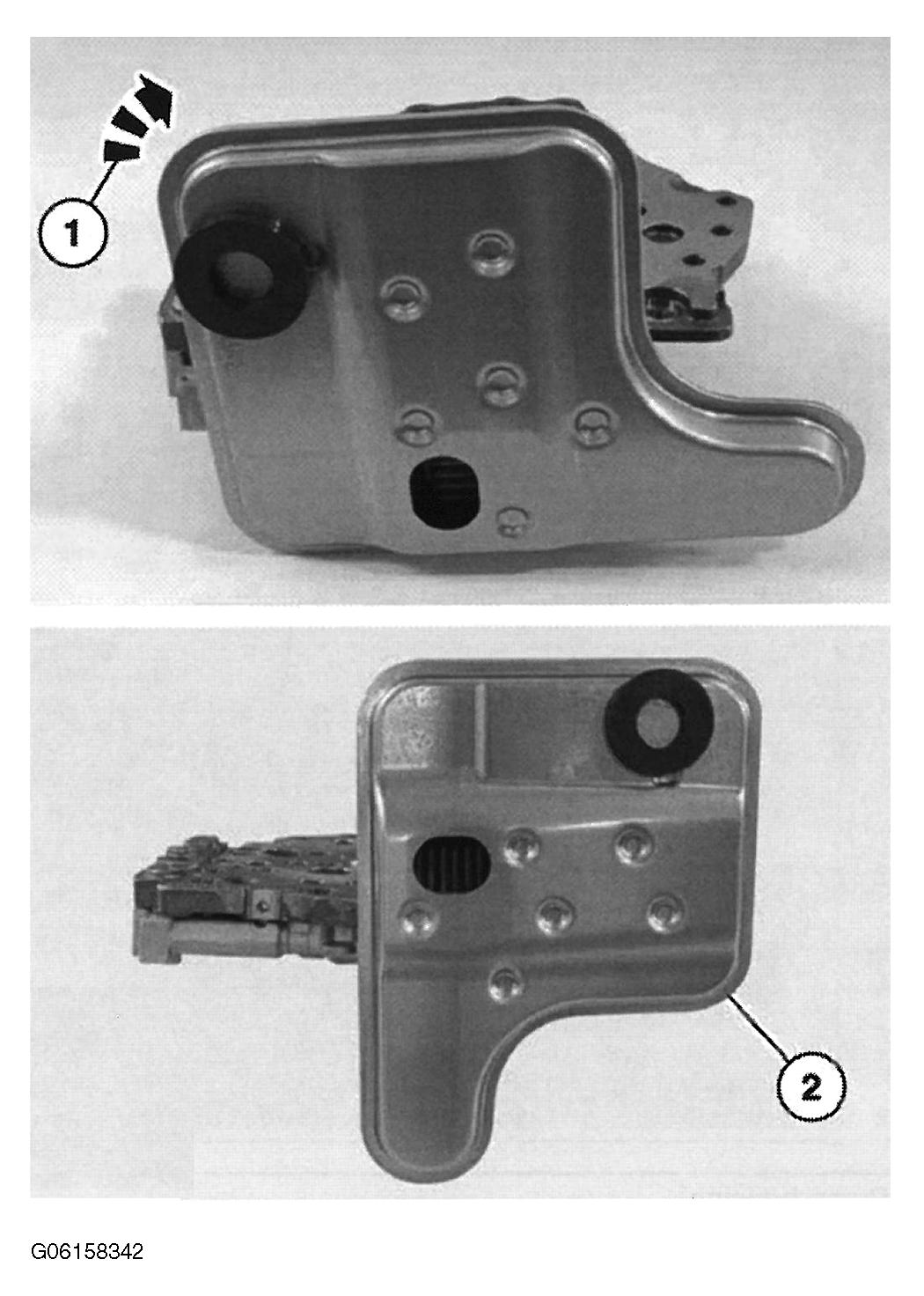

Remove the filter from the pump.
1. Rotate the filter 90 degrees clockwise.
2. Pull the filter out of the pump.

  Fig 1: View Of Filter And Pump
  Courtesy of MAZDA MOTORS CORP.
Remove the magnet from the filter.

Fig 2: Locating Magnet From Filter
Courtesy of MAZDA MOTORS CORP.

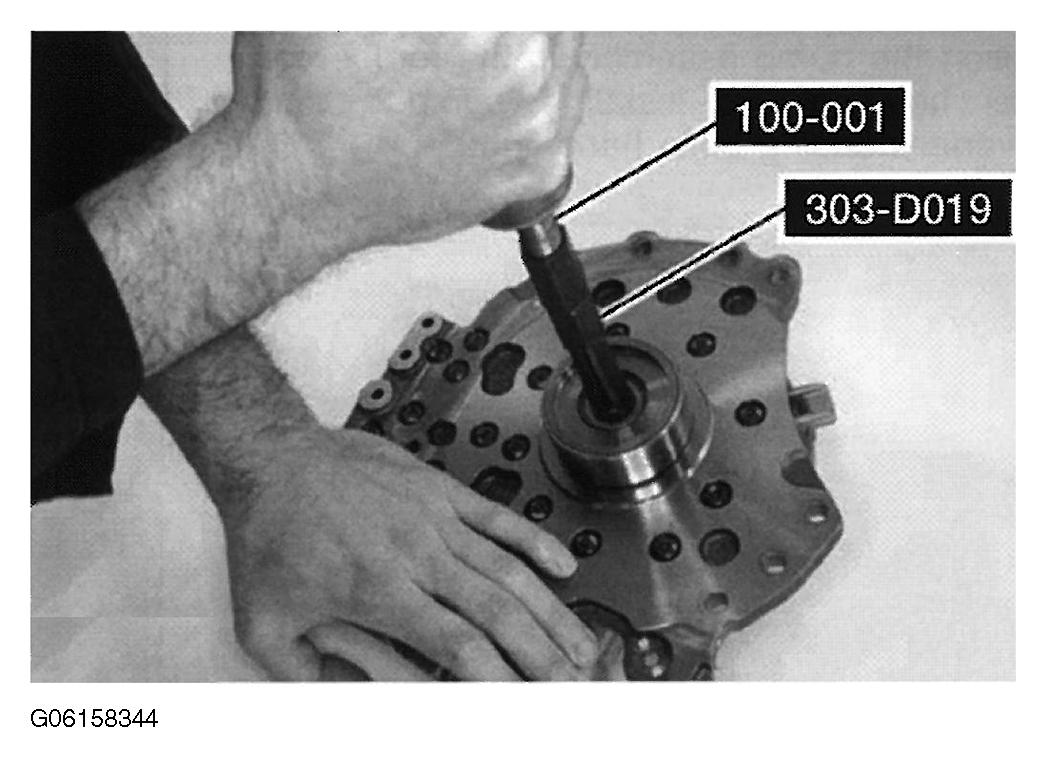

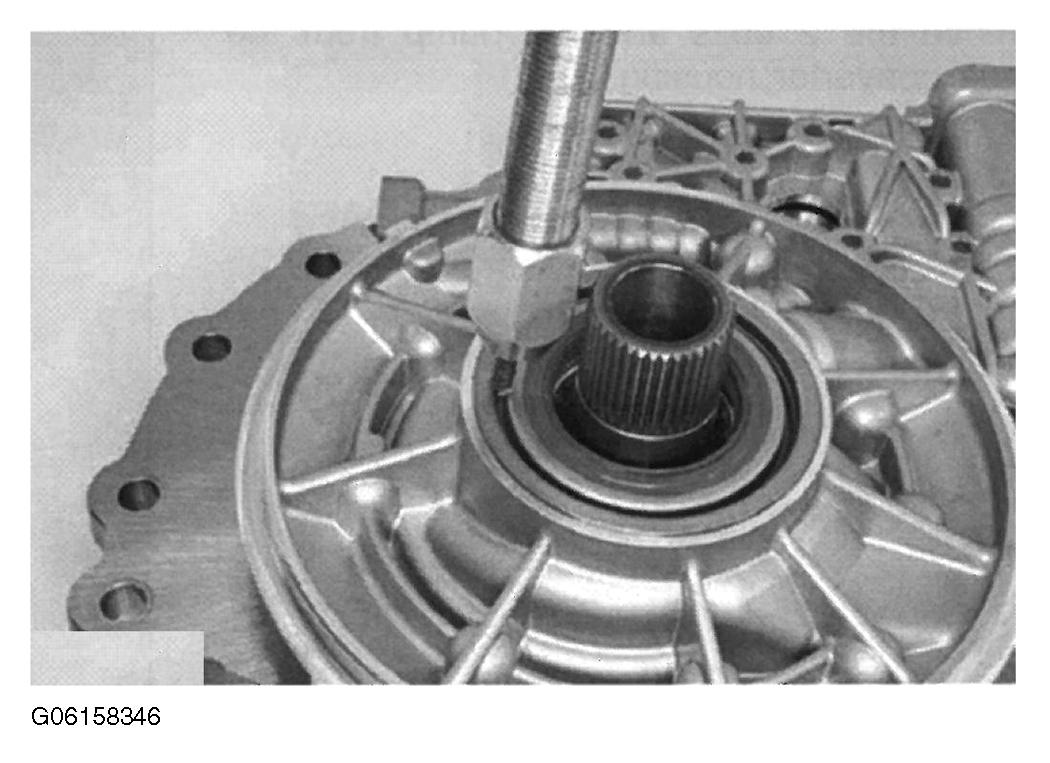

Assemble the Slide Hammer and 3/4 Inch to 7/8 Inch Collet and remove and discard the input shaft seal.

Fig 3: Removing Discard Input Shaft Seal
Courtesy of MAZDA MOTORS CORP.
Remove the pump-to-torque converter housing seal.

Fig 4: Identifying Pump-To-Torque Converter Housing Seal
Courtesy of MAZDA MOTORS CORP.
Using a suitable dent puller, remove the torque converter hub seal.

Fig 5: Identifying Torque Converter Hub Seal
Courtesy of MAZDA MOTORS CORP.

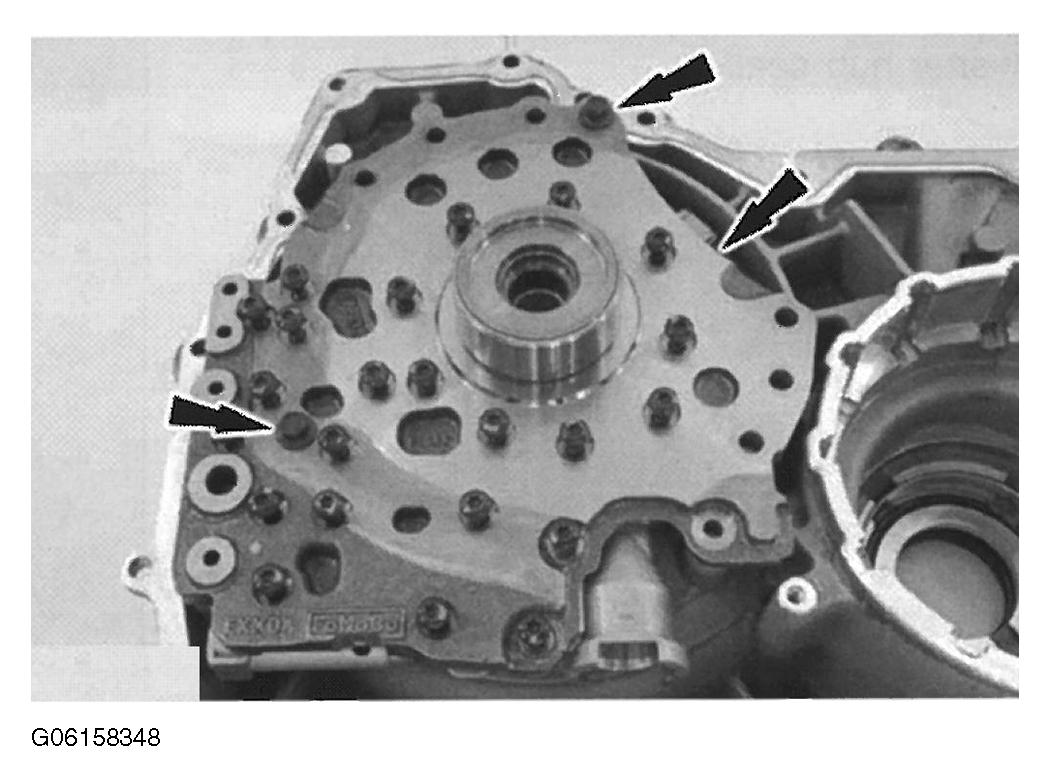

Position the pump assembly in the torque converter housing and install 2 pump-to-torque converter housing bolts hand-tight.

Fig 6: Locating Pump Assembly Bolts
Courtesy of MAZDA MOTORS CORP.
Loosen the 23 pump bolts.

Fig 7: Locating Pump Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the 2 bolts and the pump from the torque converter housing.

Fig 8: Locating Magnet From Filter
Courtesy of MAZDA MOTORS CORP.
Remove the 23 pump bolts and separate the pump halves.

Fig 9: Locating Pump Bolts
Courtesy of MAZDA MOTORS CORP.

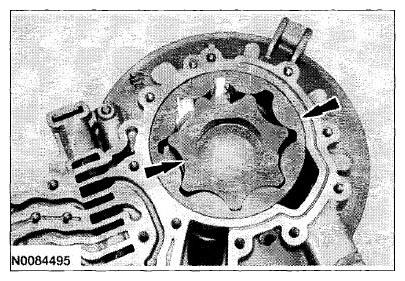

Remove the pump gears.
NOTE:
- The dot on the inner pump gear faces up.

  Fig 10: Locating Pump Gears
  Courtesy of MAZDA MOTORS CORP.

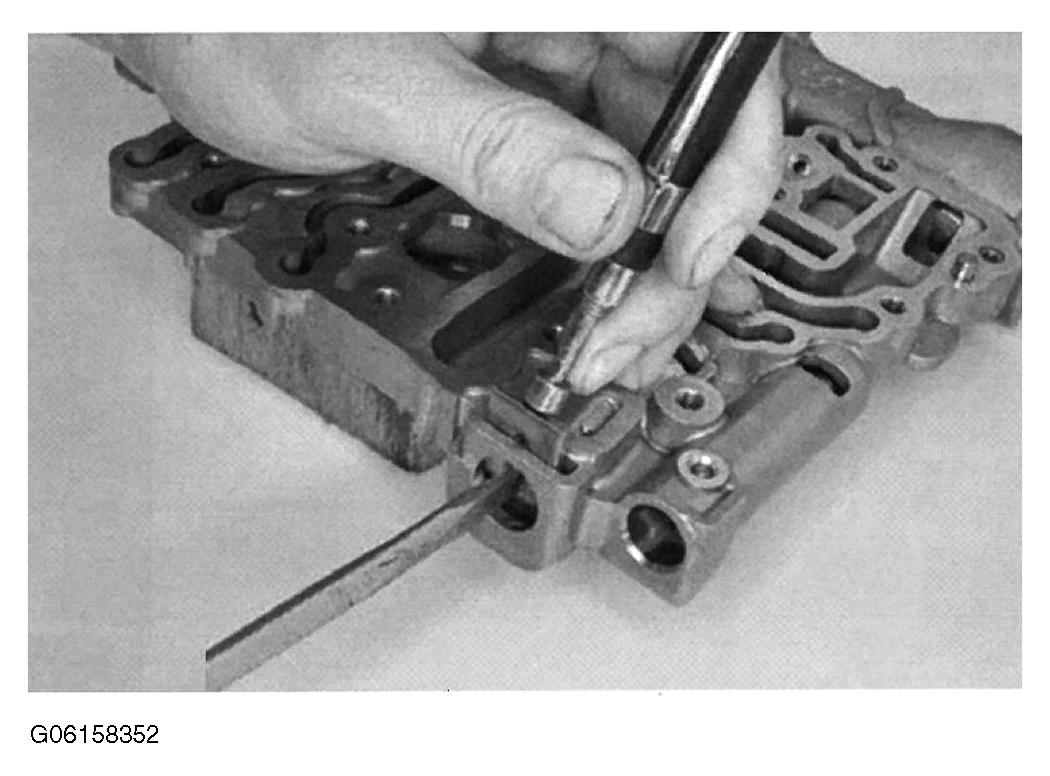

Compress the main pressure regulator valve spring with a screwdriver and remove the retainer with a magnet.

Fig 11: Compressing Main Pressure Regulator Valve Spring
Courtesy of MAZDA MOTORS CORP.

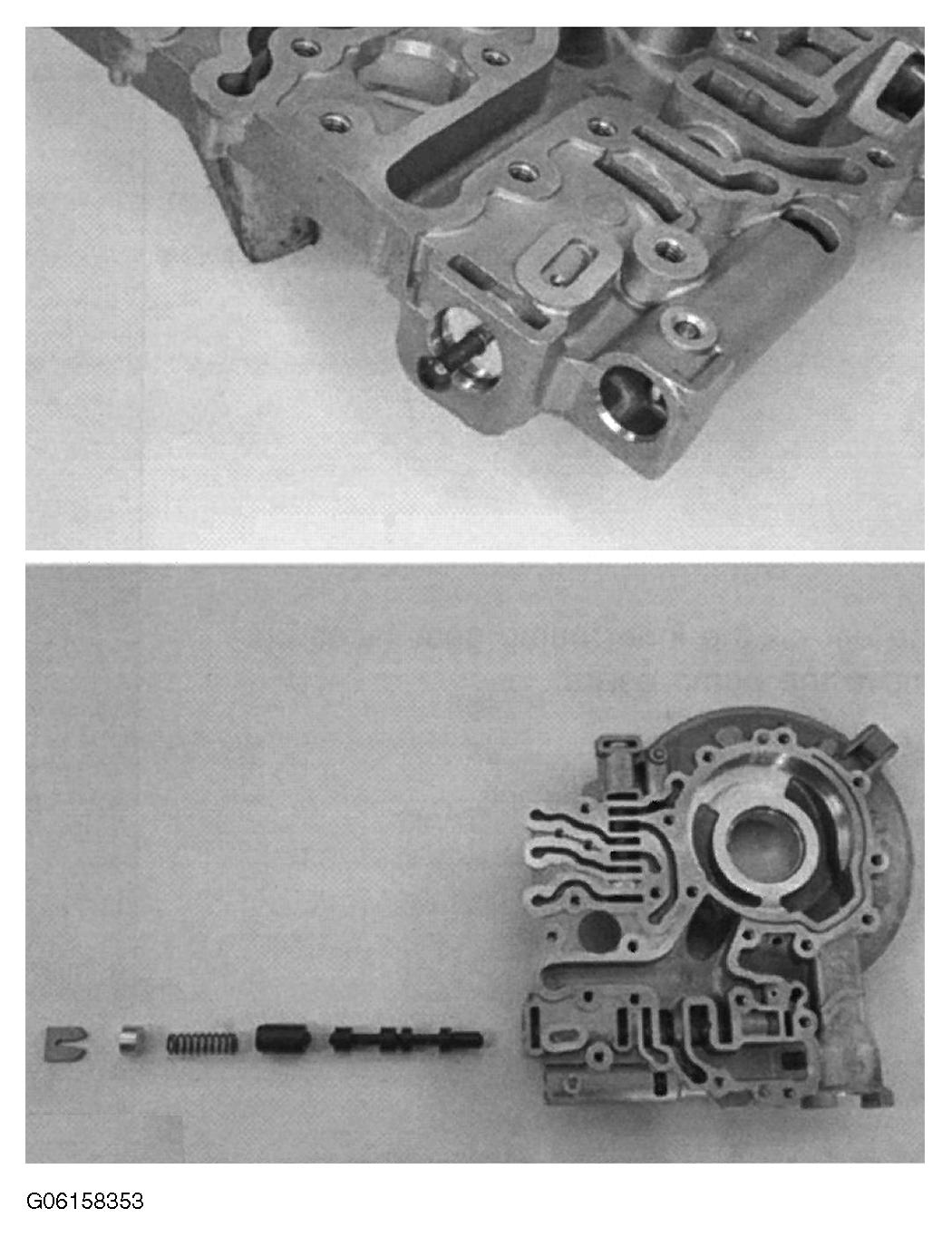

Install an M4 bolt in the valve and remove the main pressure regulator valve assembly.

Fig 12: Identifying Main Pressure Regulator Valve Assembly
Courtesy of MAZDA MOTORS CORP.

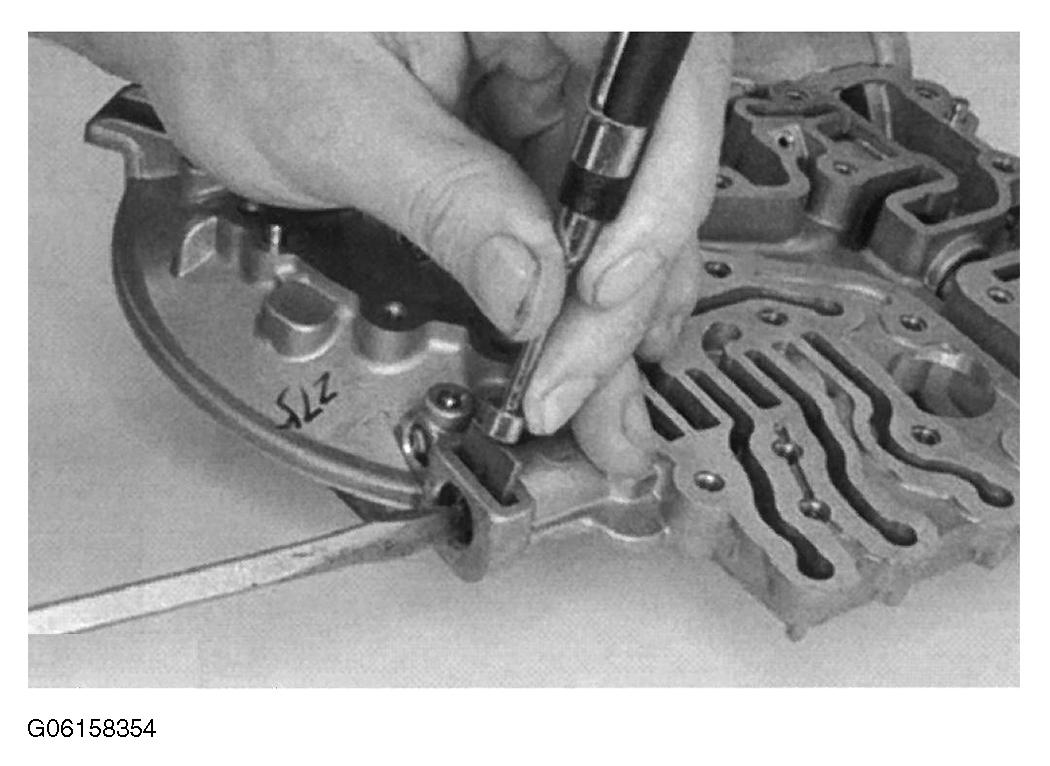

Compress the TCC control valve spring with a screwdriver and remover the retainer with a magnet.

Fig 13: Compressing TCC Control Valve Spring
Courtesy of MAZDA MOTORS CORP.

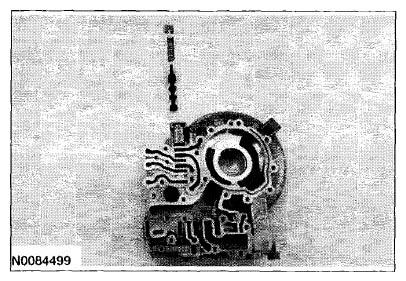

Remove the TCC control valve assembly.

Fig 14: Identifying TCC Control Valve Assembly
Courtesy of MAZDA MOTORS CORP.
