Pump Assembly Disassembly/Assembly: Assembly

  1. Assemble the TCC control valve and main pressure regulator valve and install the valves in the pump. Compress the valve springs with a screwdriver and install the retainers
  2. Assemble the TCC control valve and main pressure regulator valve and install the valves in the pump. Compress the valve springs with a screwdriver and install the retainers.

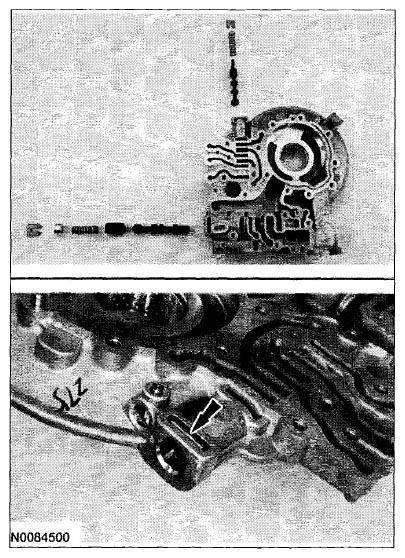

    Fig 1: Compressing Valve Springs
    G06158356Courtesy of MAZDA MOTORS CORP.
  3. Install the pump gears.
    NOTE:
    • The dot on the inner pump gear faces up.

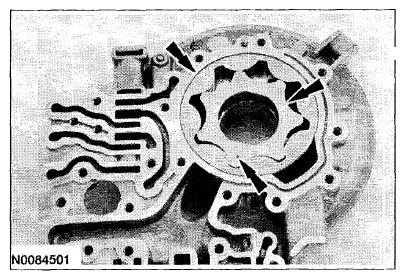

      Fig 2: Identifying Inner Pump Gear Faces Up Position
      G06158357Courtesy of MAZDA MOTORS CORP.
  4. Position the stator support on the pump housing and install the 23 bolts hand-tight.

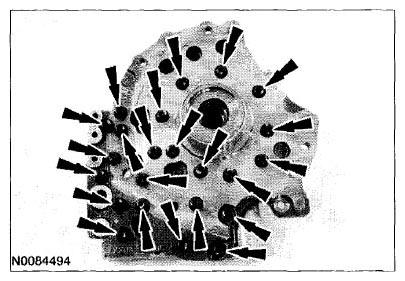

    Fig 3: Locating Pump Housing Bolts
    G06158350Courtesy of MAZDA MOTORS CORP.

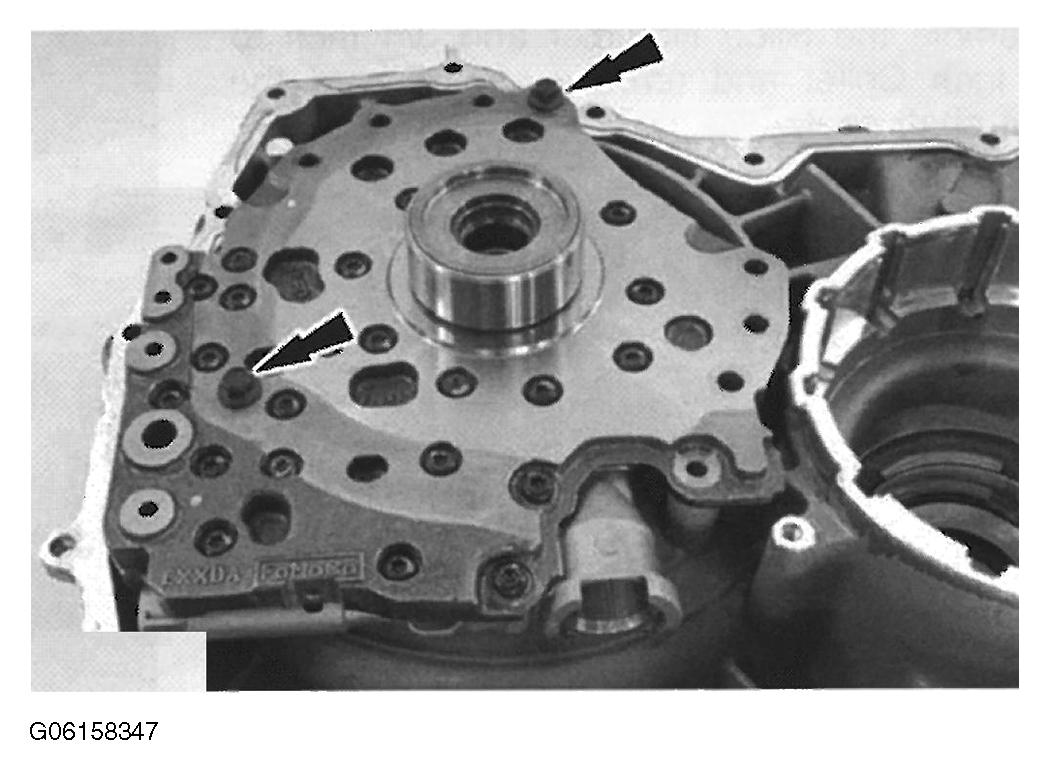

  5. Install the pump assembly in the torque converter housing and install 2 bolts hand-tight.
    Fig 4: Locating Pump Assembly Bolts
    G06158347Courtesy of MAZDA MOTORS CORP.

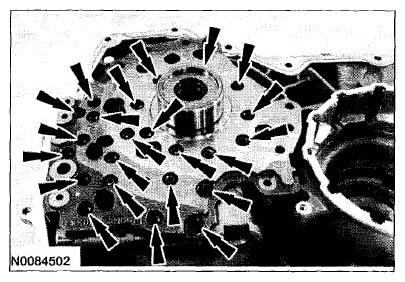

  6. Tighten the 23 bolts.
    • Tighten to 35 N.m {3.5 kgf.m, 26 ft.lbf}.
      Fig 5: Locating Pump Housing Bolts
      G06158360Courtesy of MAZDA MOTORS CORP.
  7. Remove the 2 bolts and the pump assembly from the torque converter housing.
    Fig 6: Locating Pump Assembly Bolts
    G06158347Courtesy of MAZDA MOTORS CORP.

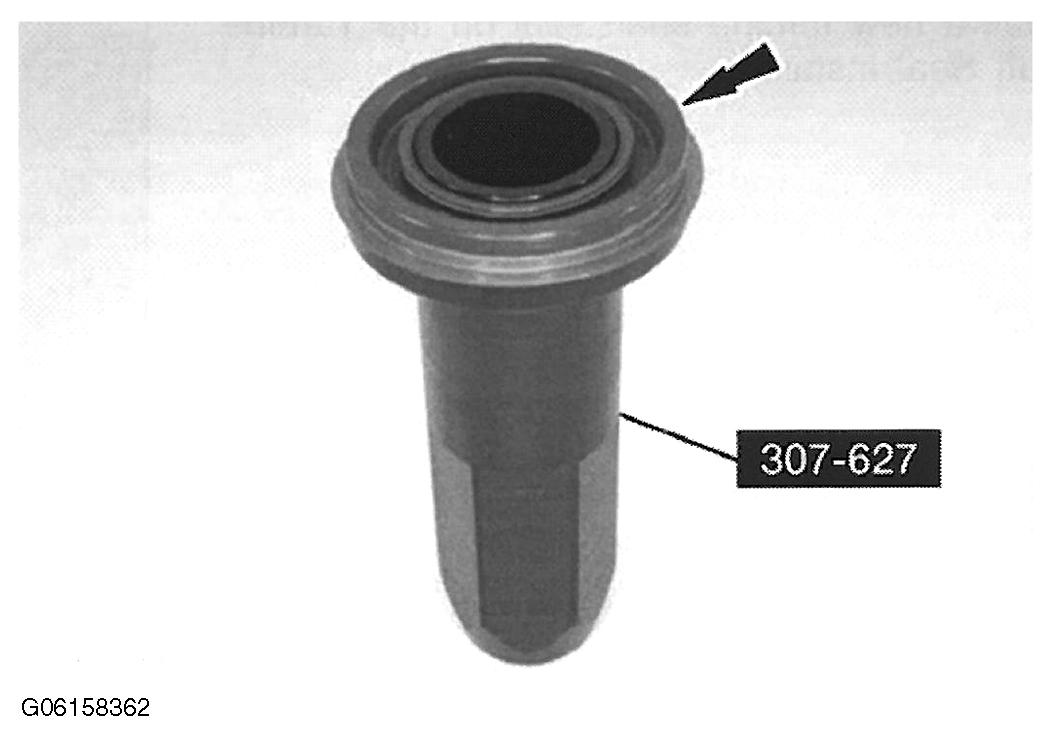

  8. Install a new seal on the Torque Converter Hub Seal Installer.
    Fig 7: Identifying Torque Converter Hub Seal Installer
    G06158362Courtesy of MAZDA MOTORS CORP.

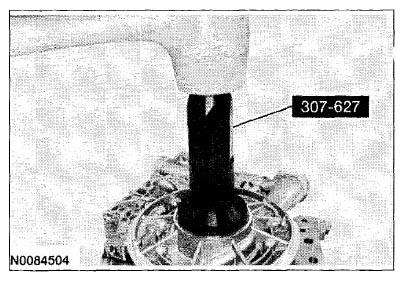

  9. Using the Torque Converter Hub Seal Installer, install a new torque converter hub seal.
    Fig 8: Tapping Torque Converter Hub Seal
    G06158363Courtesy of MAZDA MOTORS CORP.

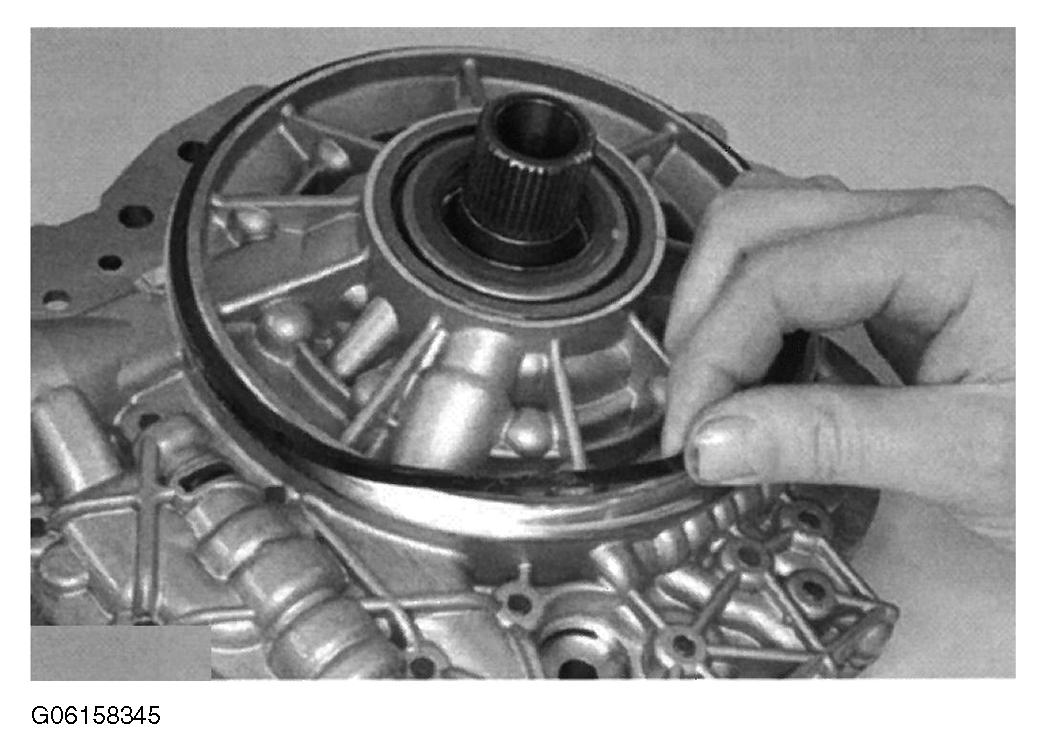

  10. Install a new pump-to-torque converter housing seal.
    Fig 9: Identifying Pump-To-Torque Converter Housing Seal
    G06158345Courtesy of MAZDA MOTORS CORP.
  11. Install a new turbine shaft seal on the Turbine Shaft Seal Installer.

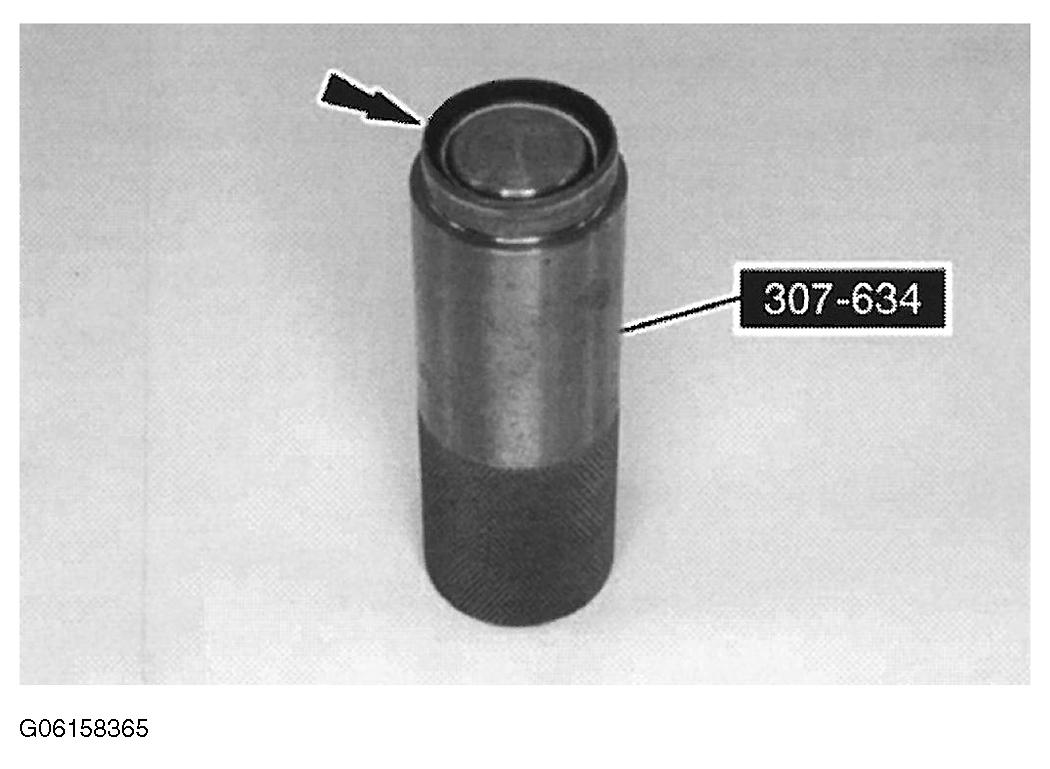

    Fig 10: Identifying Turbine Shaft Seal Installer
    G06158365Courtesy of MAZDA MOTORS CORP.
  12. Using the Turbine Shaft Seal Installer, install the turbine shaft seal.

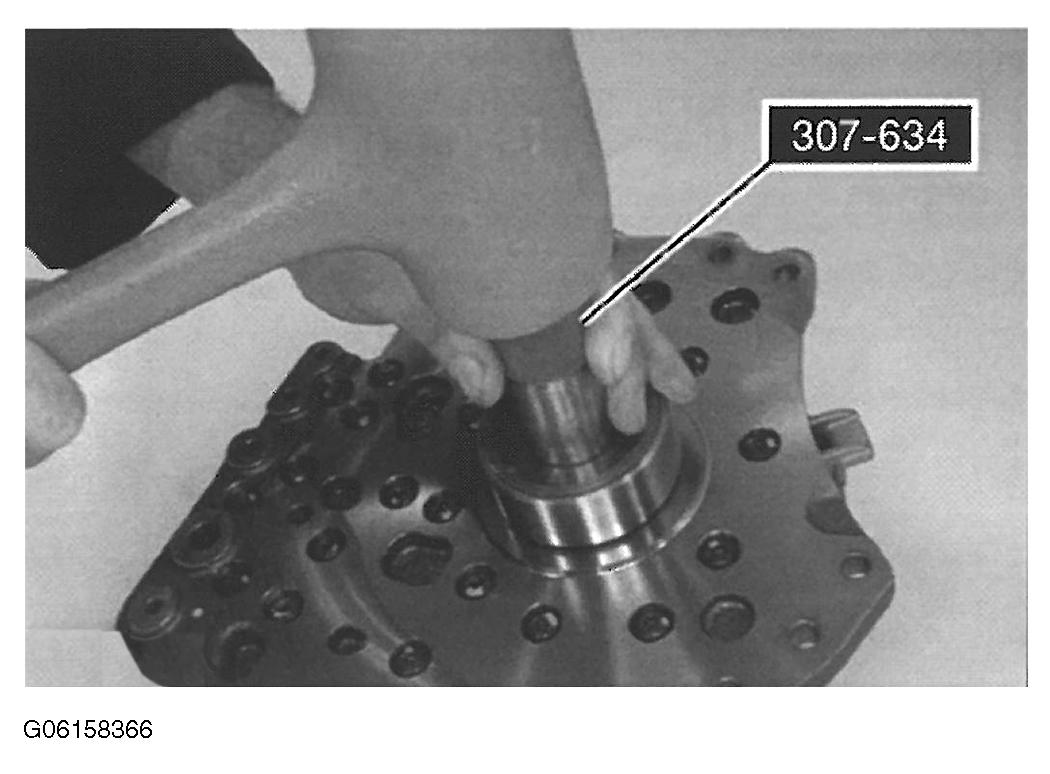

    Fig 11: Tapping Turbine Shaft Seal
    G06158366Courtesy of MAZDA MOTORS CORP.
  13. Install a new O-ring on a new filter and lubricate it with clean automatic transaxle fluid.

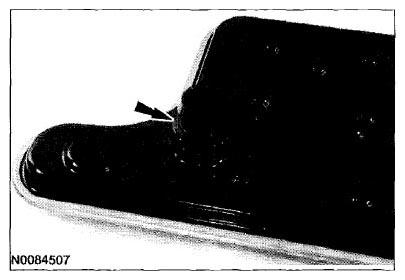

    Fig 12: Locating O-Ring
    G06158367Courtesy of MAZDA MOTORS CORP.
  14. Install the magnet on the filter.

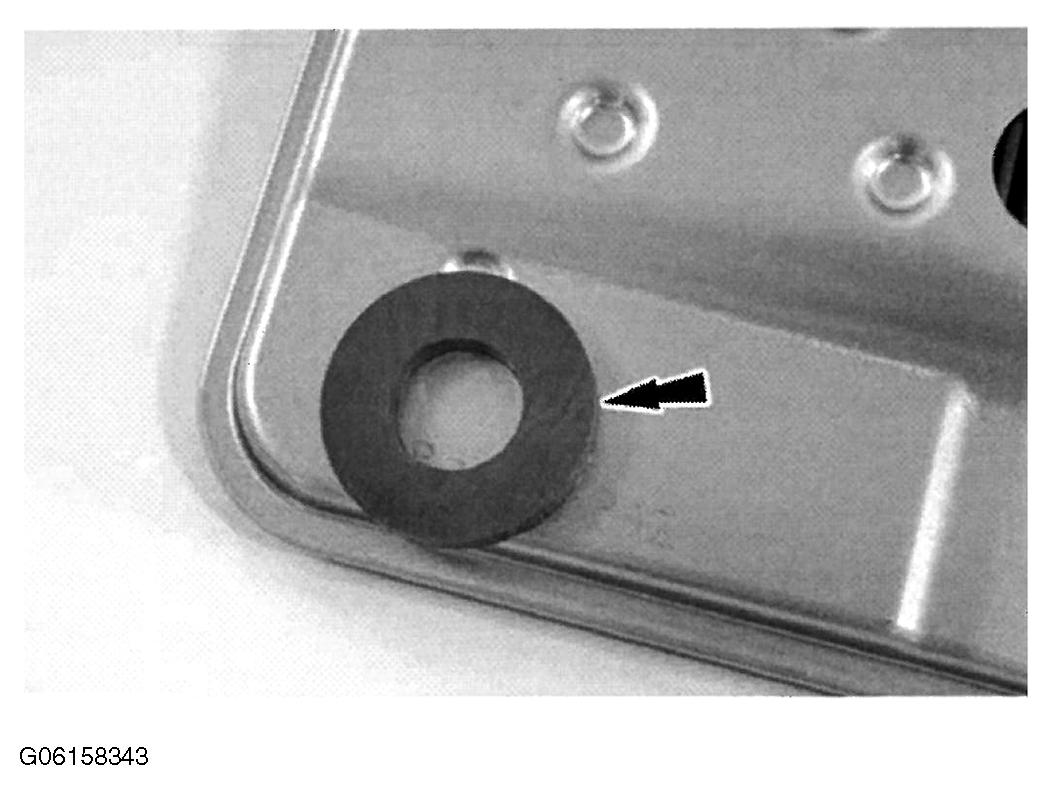

    Fig 13: Locating Magnet From Filter
    G06158343Courtesy of MAZDA MOTORS CORP.
  15. Install the filter.
    1. Position the filter in the pump
    2. Rotate the filter counterclockwise 90 degrees.

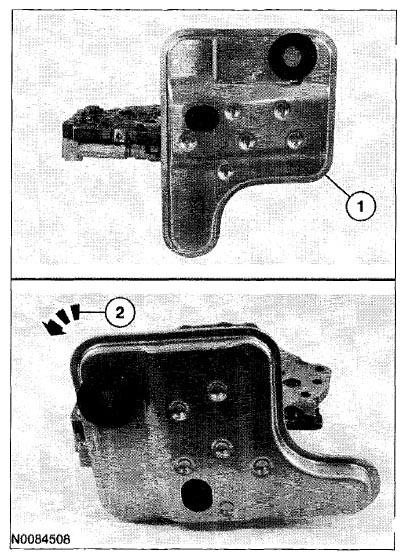

      Fig 14: Positioning Filter In Pump
      G06158369Courtesy of MAZDA MOTORS CORP.
