Main Control Valve Body Removal/Installation: Notes

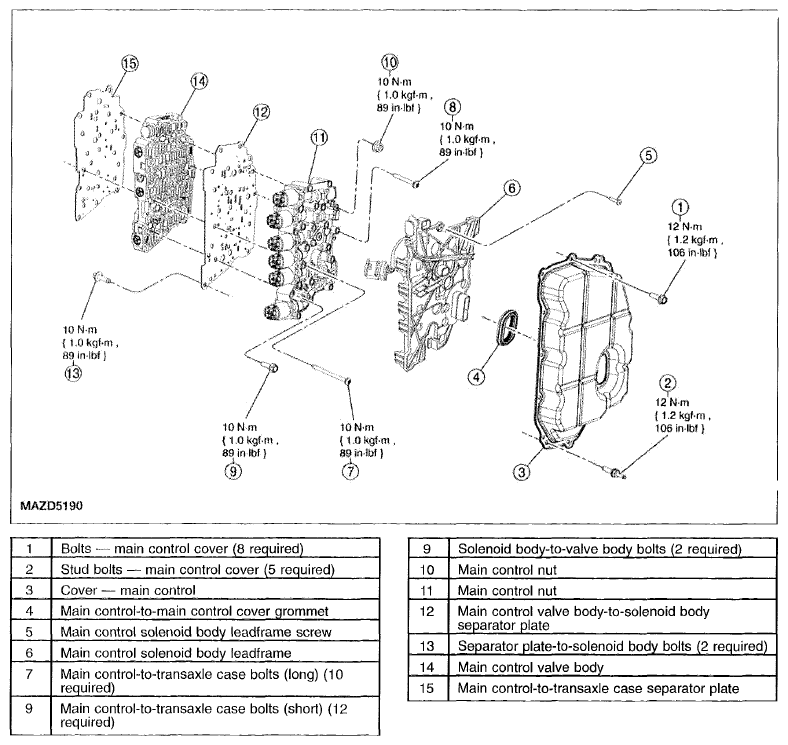

Fig 1: Identifying Main Control Valve Body Components

G06158065

Courtesy of MAZDA MOTORS CORP.
