Main Control Valve Body Assembly Disassembly/Assembly: Assembly

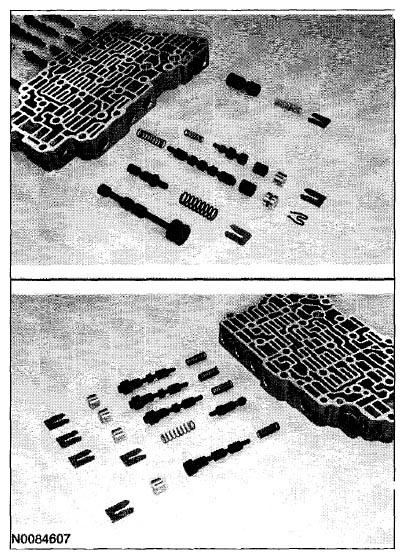

Install the valve body valves, springs and retaining clips in the main control valve body. See the Valve Body illustration for valve and spring locations.
CAUTION:
- Do not stone or polish any valves. If the valves do not move freely during assembly, install a new valve body.

  Fig 1: Identifying Valve Body Valves, Springs And Retaining Clips
  Courtesy of MAZDA MOTORS CORP.

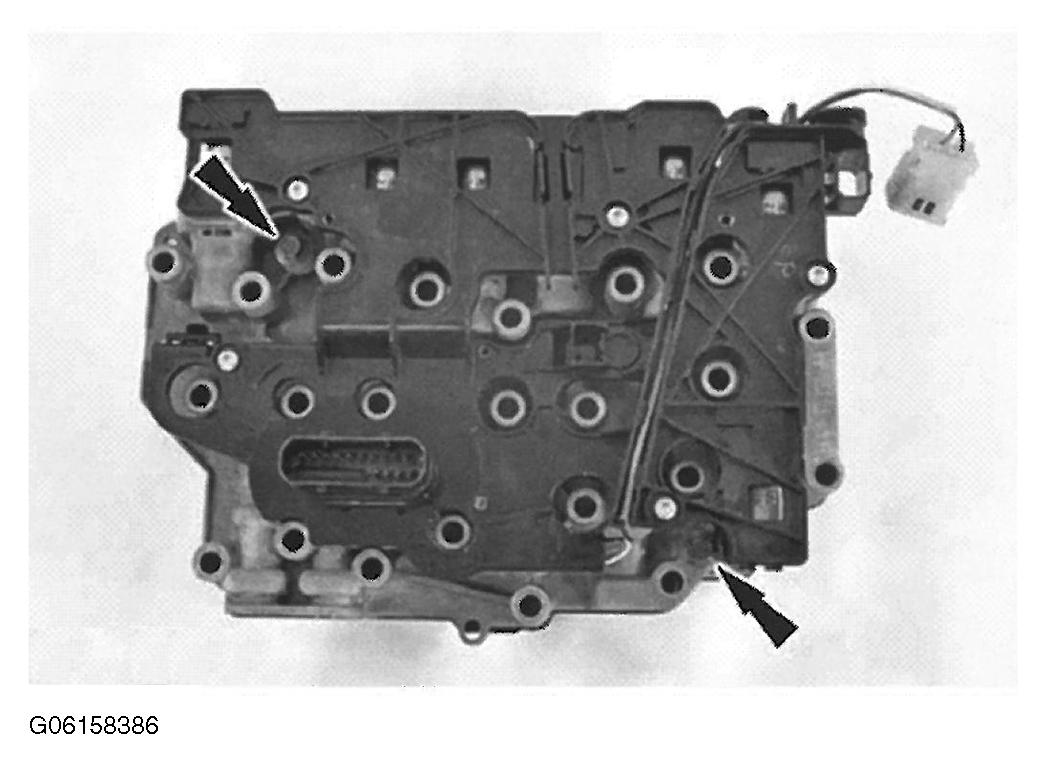

Install the manual valve in the valve body.

Fig 2: Locating Manual Valve
Courtesy of MAZDA MOTORS CORP.

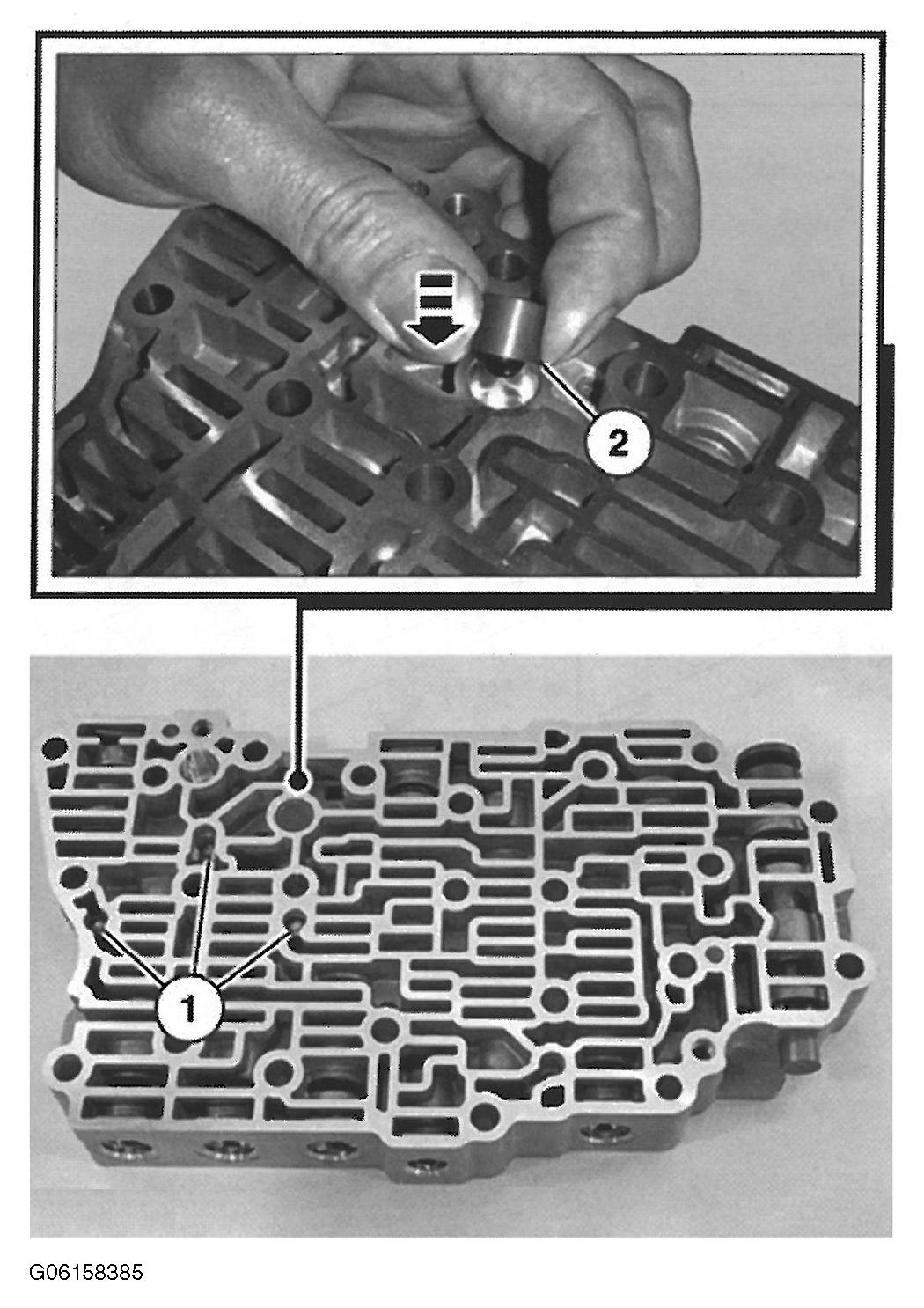

Install the 3 check balls and the damper.
1. Check balls
2. Solenoid damper

  Fig 3: Identifying Check Balls And Solenoid Damper
  Courtesy of MAZDA MOTORS CORP.
For disassembly and assembly of the solenoid body, see SOLENOID BODY ASSEMBLY DISASSEMBLY/ASSEMBLY .
Position the solenoid body assembly on the valve body and install the 2 bolts.
- Tighten to 10 N.m {1.0 kgf.m, 89 in.lbf}.

  Fig 4: Locating Solenoid Body Bolts
  Courtesy of MAZDA MOTORS CORP.
