Home >> Mazda >> 2009 >> Tribute s Sport, 4WD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle - Non-Hybrid >> Main Control Cover Removal/Installation >> Notes

Main Control Cover Removal/Installation: Notes

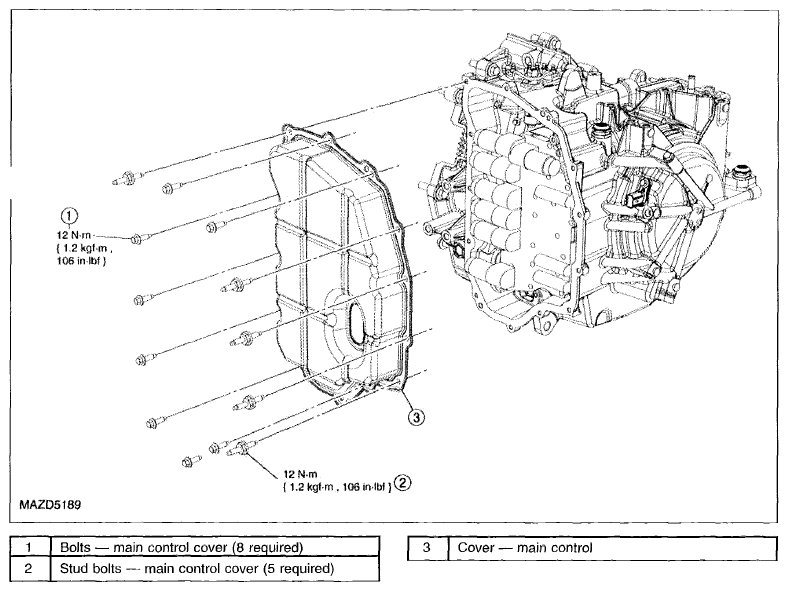

Fig 1: Identifying Main Control Cover

G06157937

Courtesy of MAZDA MOTORS CORP.
