Main Control Valve Body

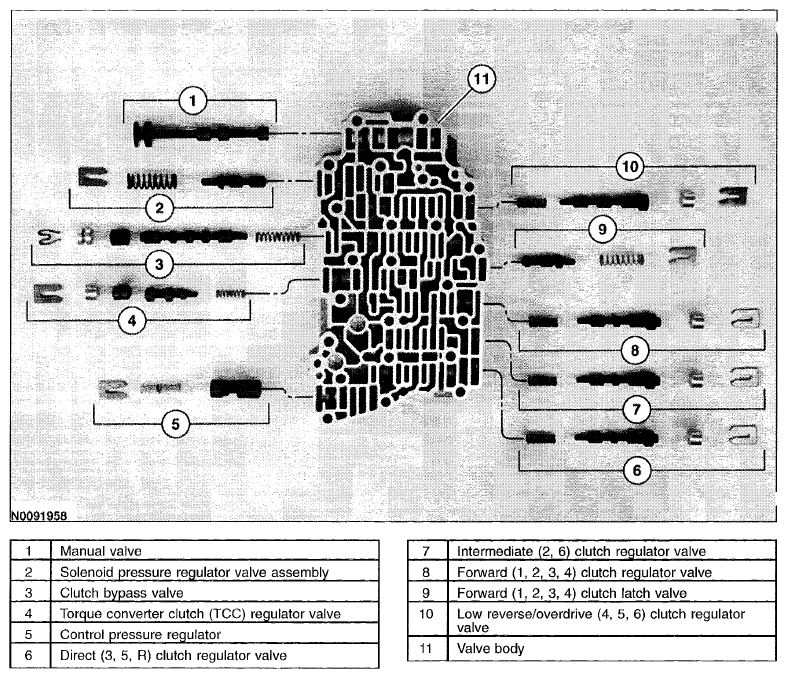

Fig 1: Identifying Main Control Valve Body Components
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
