Center Support Disassembly/Assembly: Disassembly

Install the Forward-Low/Reverse Return Spring Compressor on the forward (1, 2, 3, 4) clutch return spring.
NOTE:
- The forward clutch piston in the center support is the side of the center support with the short legs.

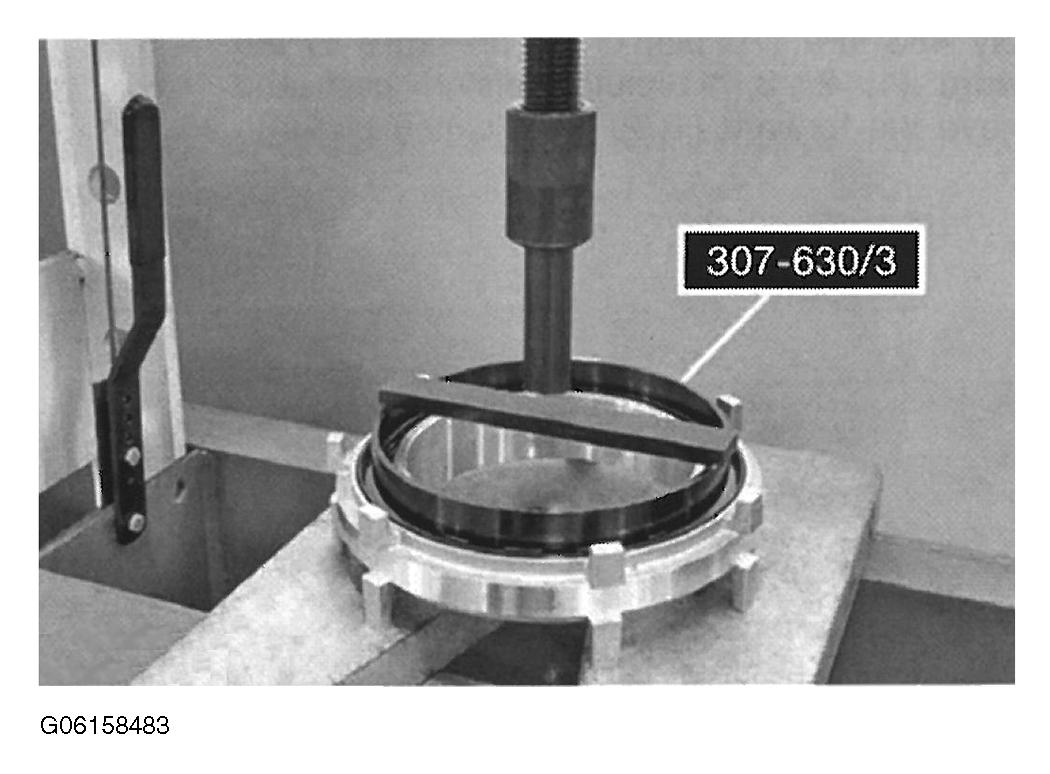

  Fig 1: Identifying Forward-Low/Reverse Return Spring Compressor On Forward (1, 2, 3, 4) Clutch Return Spring
  Courtesy of MAZDA MOTORS CORP.
Using Forward-Low/Reverse Return Spring Compressor and a press, compress the forward (1, 2, 3, 4) clutch return spring and remove the snap ring.

Fig 2: Compressing Forward (1, 2, 3, 4) Clutch Return Spring
Courtesy of MAZDA MOTORS CORP.
Remove the Forward-Low/Reverse Return Spring Compressor.

Fig 3: Using Special Tool To Remove Forward-Low/Reverse Return Spring Compressor
Courtesy of MAZDA MOTORS CORP.
Remove the return spring from the Forward-Low/Reverse Return Spring Compressor or the forward (1, 2, 3, 4) clutch piston.

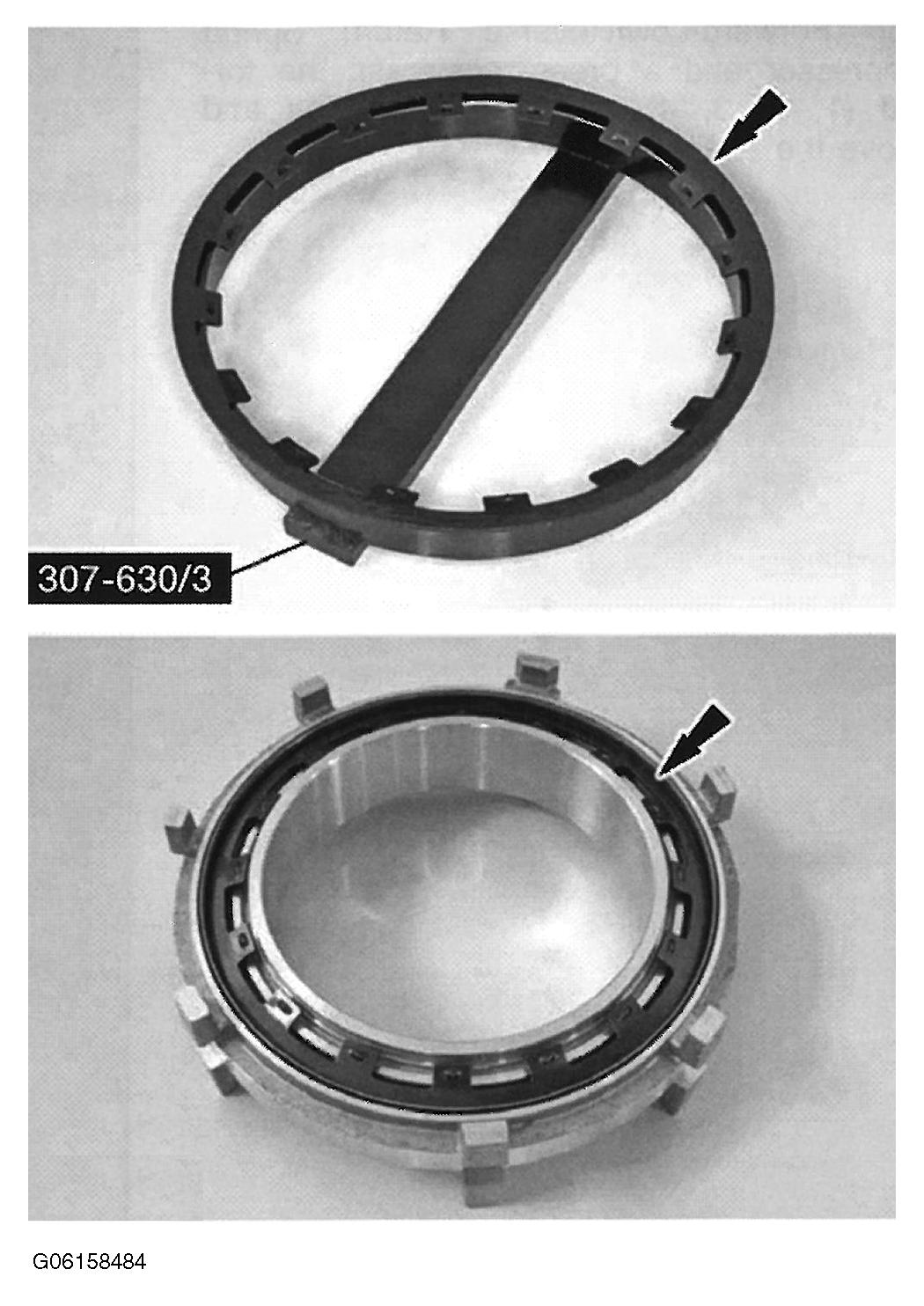

Fig 4: Identifying Forward-Low/Reverse Return Spring Compressor
Courtesy of MAZDA MOTORS CORP.
Apply 483 kPa (70 psi) of air pressure to the forward (1, 2, 3, 4) clutch piston port and remove the forward (1, 2, 3, 4) clutch piston.

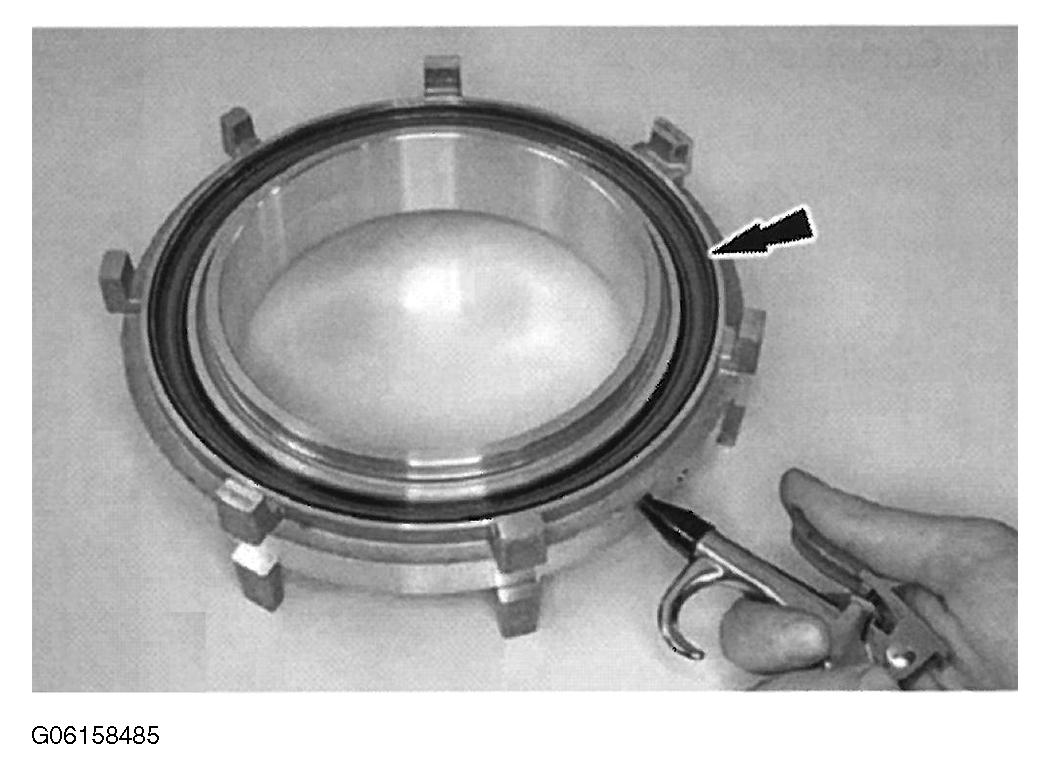

Fig 5: Applying Of Air Pressure To Forward (1, 2, 3, 4) Clutch Piston Port
Courtesy of MAZDA MOTORS CORP.
Install the Forward-Low/Reverse Return Spring Compressor on the low/reverse return spring.

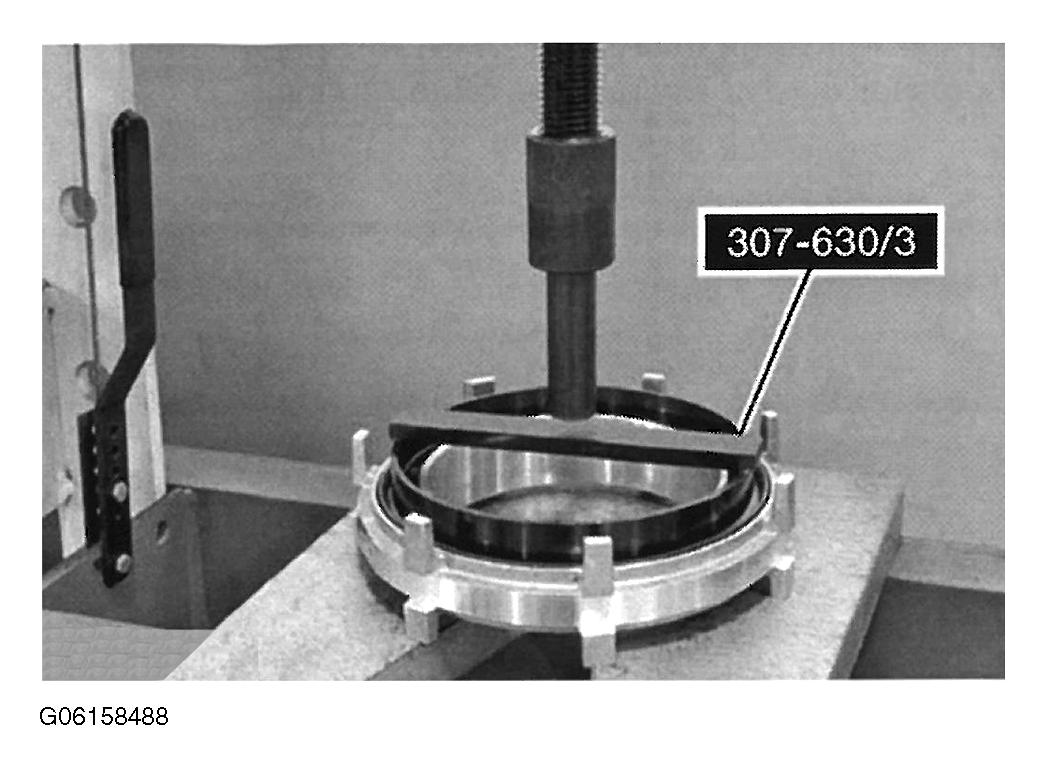

Fig 6: Identifying Forward-Low/Reverse Return Spring Compressor On Low/Reverse Return Spring
Courtesy of MAZDA MOTORS CORP.
Using Forward-Low/Reverse Return Spring Compressor and a press, compress the low/reverse clutch return spring and remove the snap ring.

Fig 7: Compressing Low/Reverse Clutch Return Spring
Courtesy of MAZDA MOTORS CORP.
Remove the Forward-Low/Reverse Return Spring Compressor.

Fig 8: Using Special Tool To Remove Forward-Low/Reverse Return Spring Compressor
Courtesy of MAZDA MOTORS CORP.
Remove the low/reverse clutch return spring.

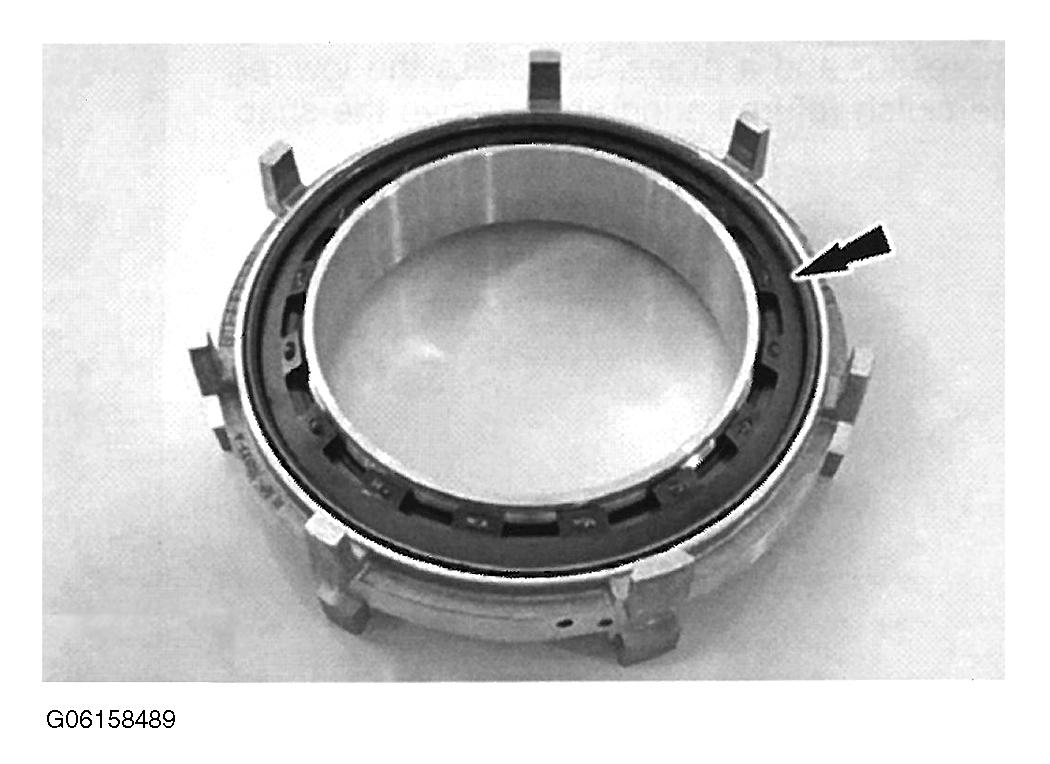

Fig 9: Locating Low/Reverse Clutch Return Spring
Courtesy of MAZDA MOTORS CORP.
Apply 483 kPa (70 psi) of air pressure to the low/reverse clutch piston port and remove the low/reverse clutch piston.

Fig 10: Applying Of Air Pressure To Low/Reverse Clutch Piston Port
Courtesy of MAZDA MOTORS CORP.
