Center Support Disassembly/Assembly: Assembly

Clean and inspect the center support for damage. Install a new center support if necessary.
Install the Seal Protector on the center support.

Fig 1: Using Special Tool To Install Seal Protector On Center Support
Courtesy of MAZDA MOTORS CORP.

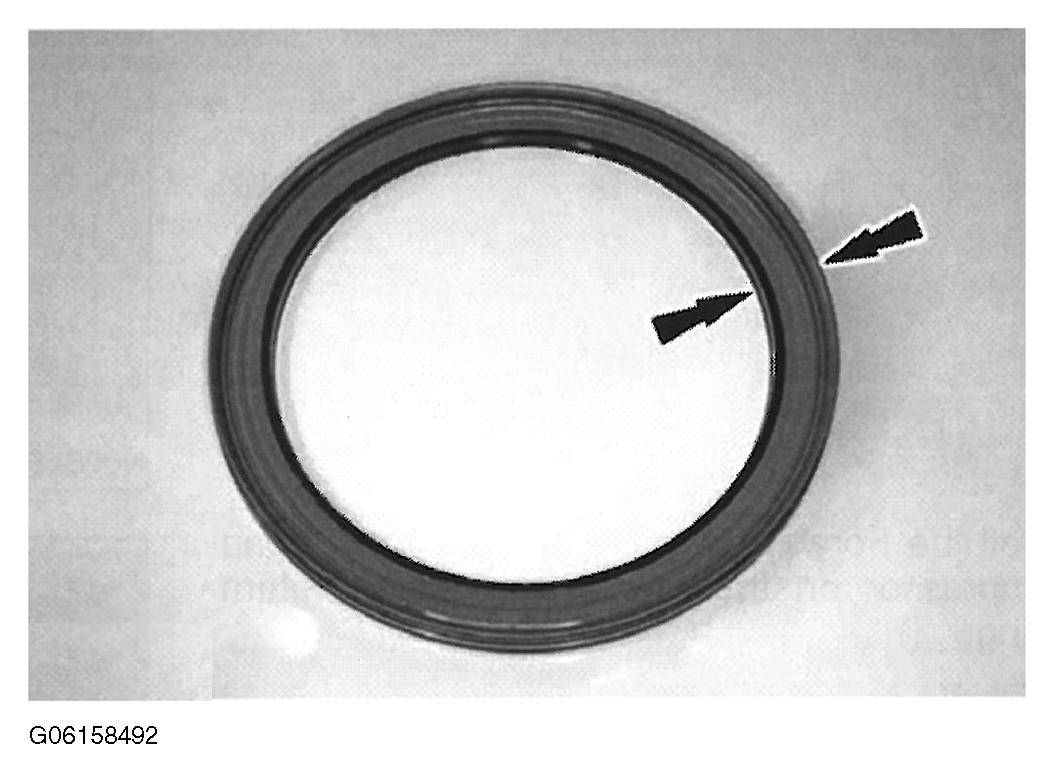

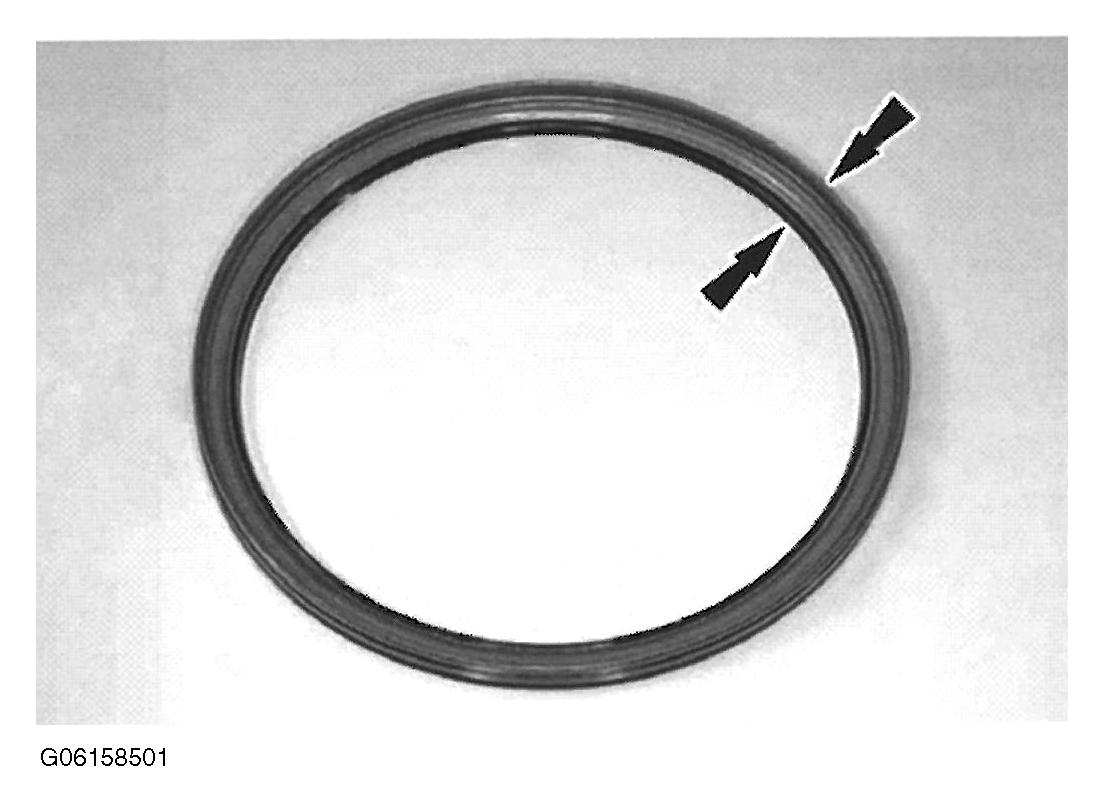

Lubricate the sealing surfaces of the low/reverse piston with petroleum jelly.

Fig 2: Identifying Sealing Surfaces Of Low/Reverse Piston
Courtesy of MAZDA MOTORS CORP.

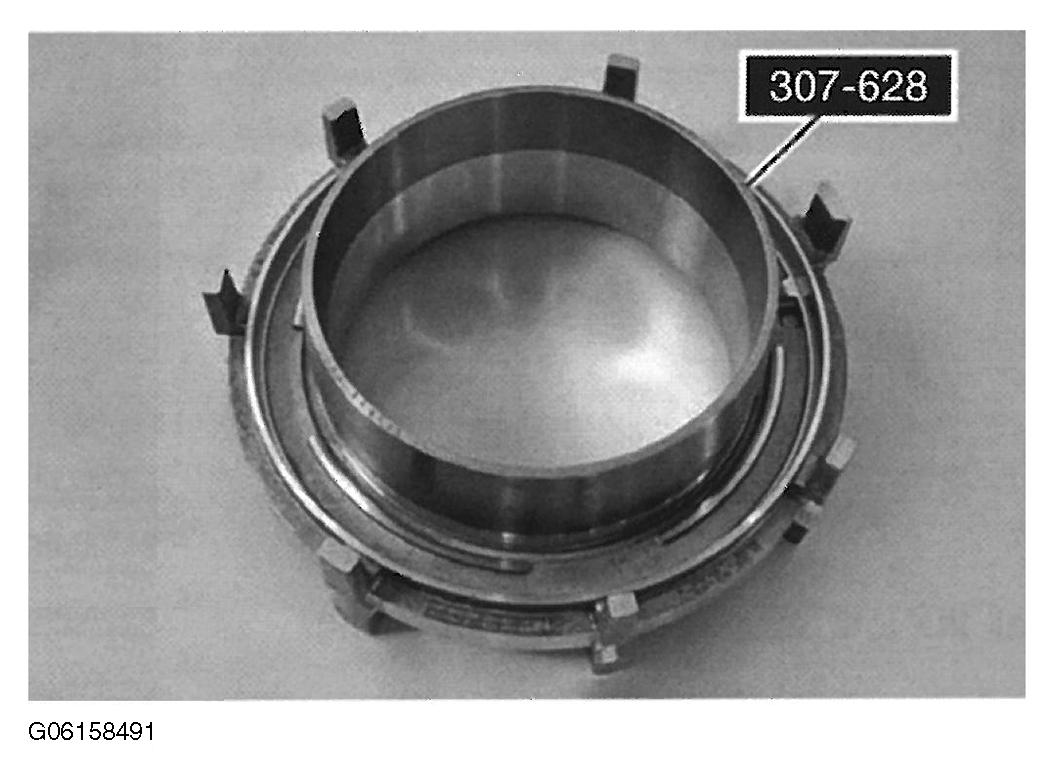

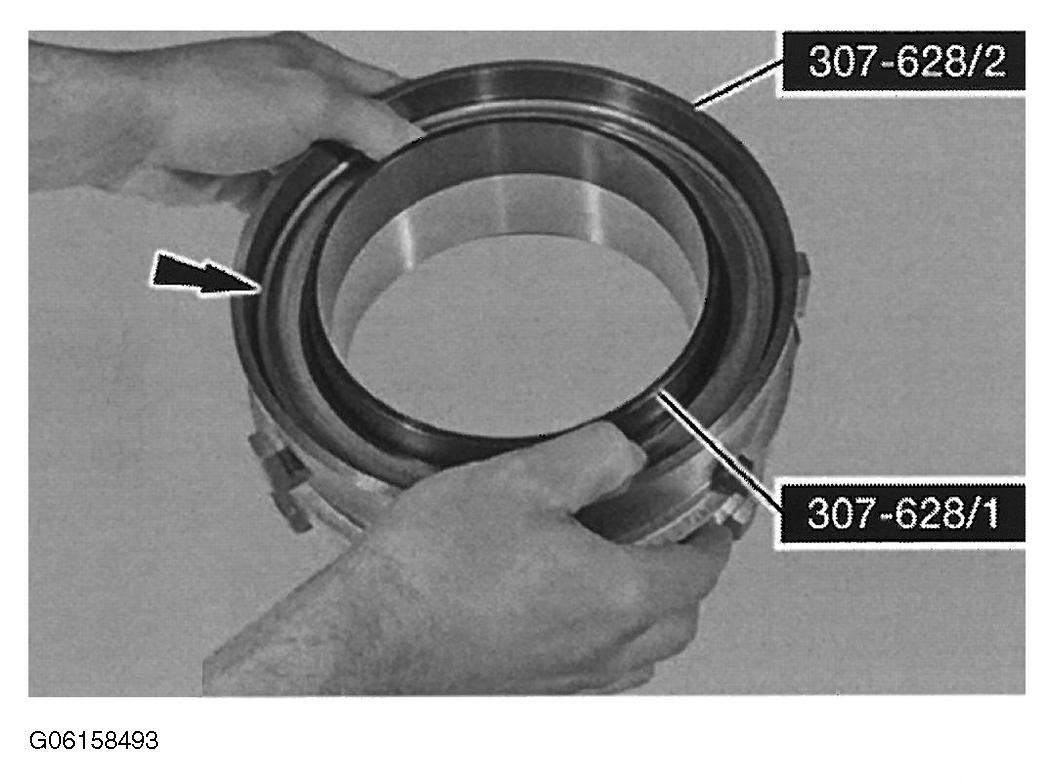

Position the low/reverse clutch piston on the Seal Protector 307-628 and push it down into the center support.

Fig 3: Positioning Low/Reverse Clutch Piston On Seal Protector
Courtesy of MAZDA MOTORS CORP.
Remove the Seal Protector.

Fig 4: View Of Removing Seal Protector
Courtesy of MAZDA MOTORS CORP.

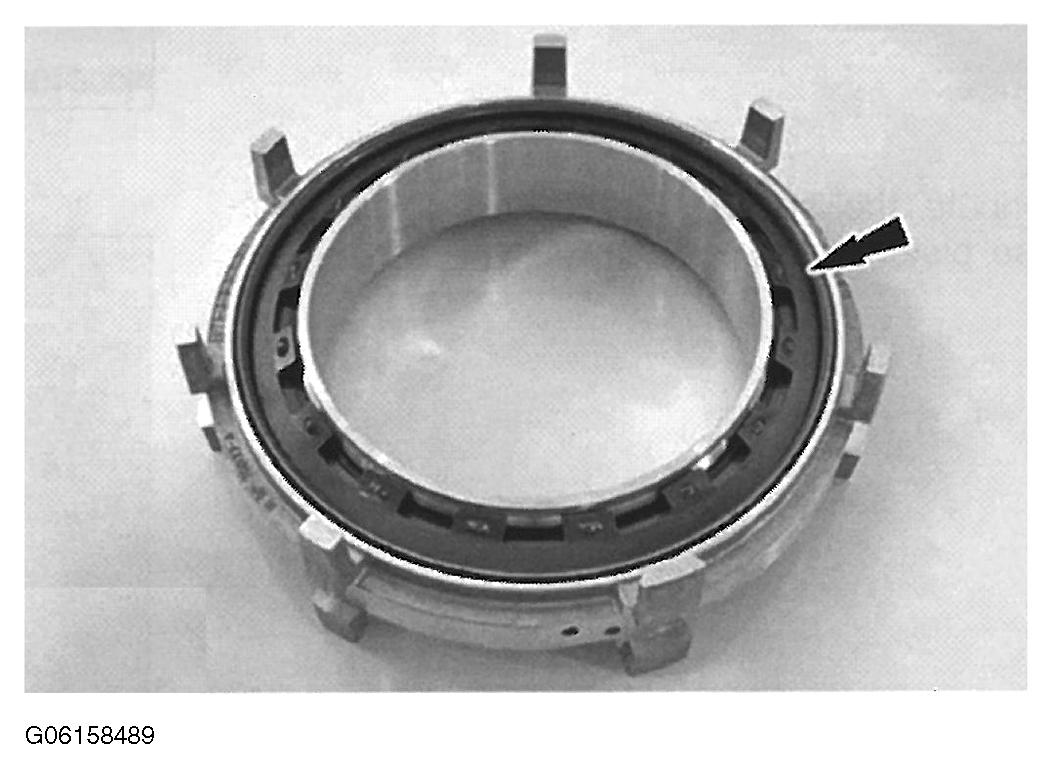

Install the low/reverse piston return spring.

Fig 5: Locating Low/Reverse Piston Return Spring
Courtesy of MAZDA MOTORS CORP.

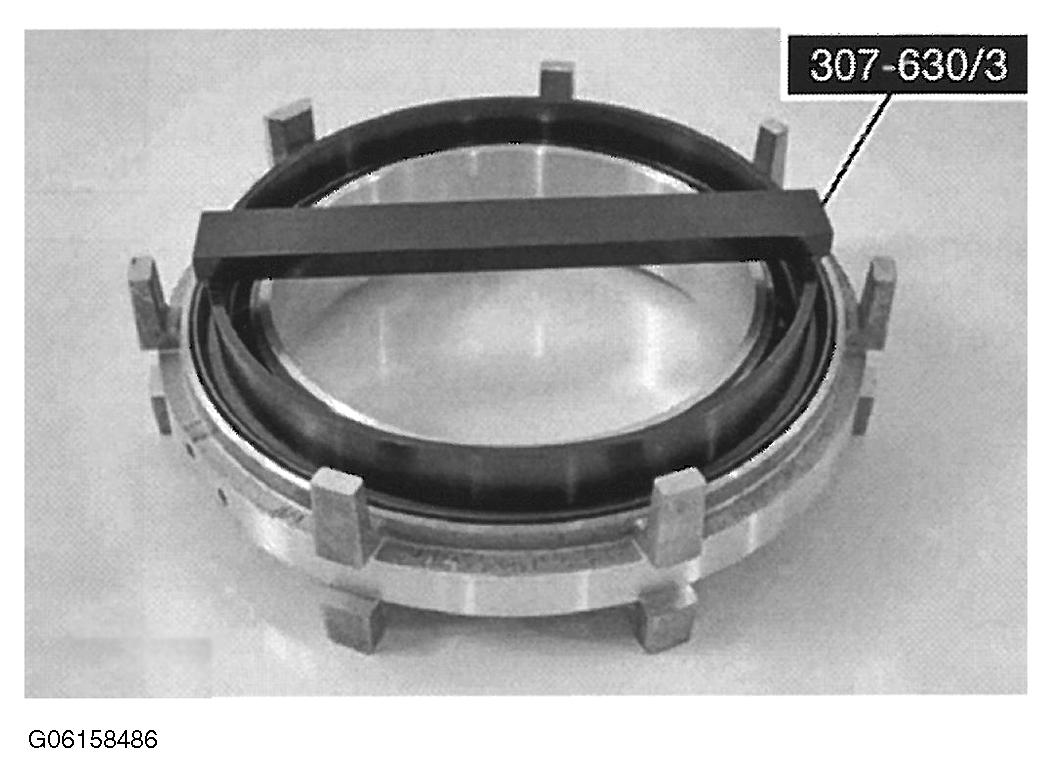

Install the Forward-Low/Reverse Return Spring Compressor on the low/reverse piston return spring.

Fig 6: Identifying Forward-Low/Reverse Return Spring Compressor On Low/Reverse Piston Return Spring
Courtesy of MAZDA MOTORS CORP.

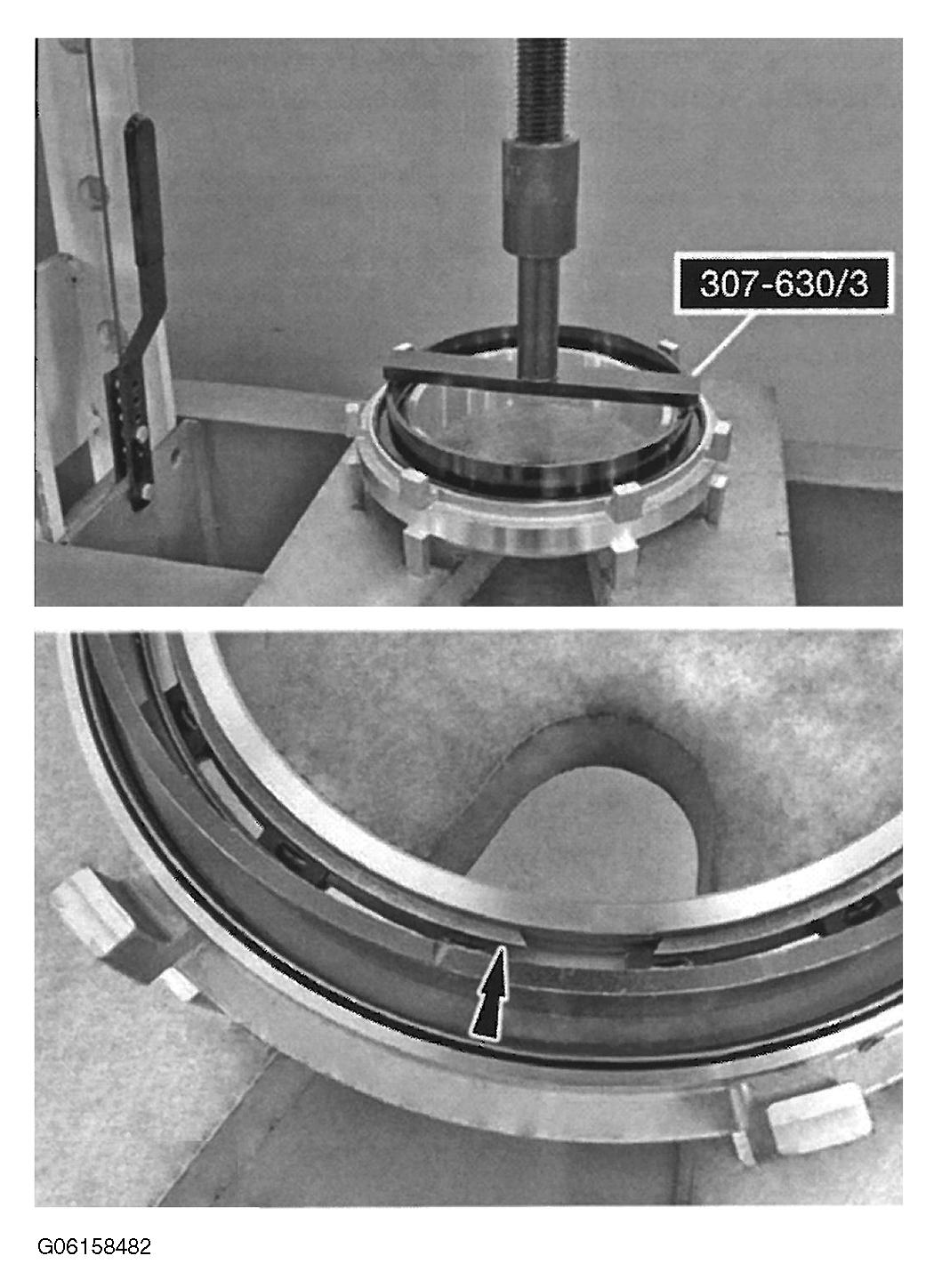

Using Forward-Low/Reverse Return Spring Compressor and a press, compress the low/reverse clutch return spring and install the snap ring.

Fig 7: Compressing Low/Reverse Clutch Return Spring
Courtesy of MAZDA MOTORS CORP.
Remove Forward-Low/Reverse Return Spring Compressor.

Fig 8: Identifying Forward-Low/Reverse Return Spring Compressor
Courtesy of MAZDA MOTORS CORP.

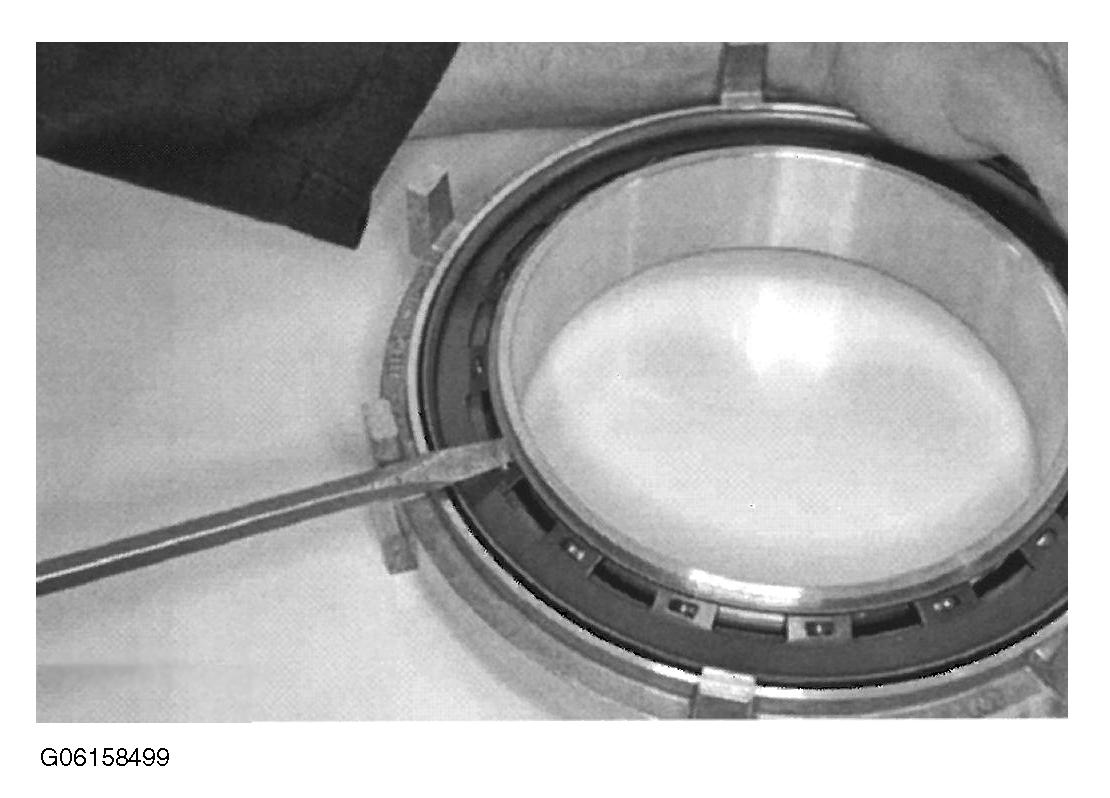

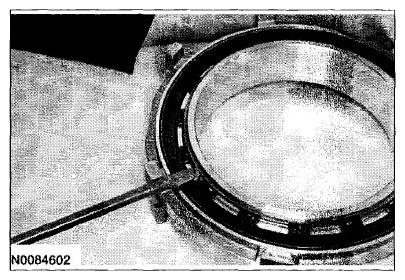

Inspect the snap ring to be sure it is seated in the groove on the center support.

Fig 9: Inspecting Snap Ring
Courtesy of MAZDA MOTORS CORP.

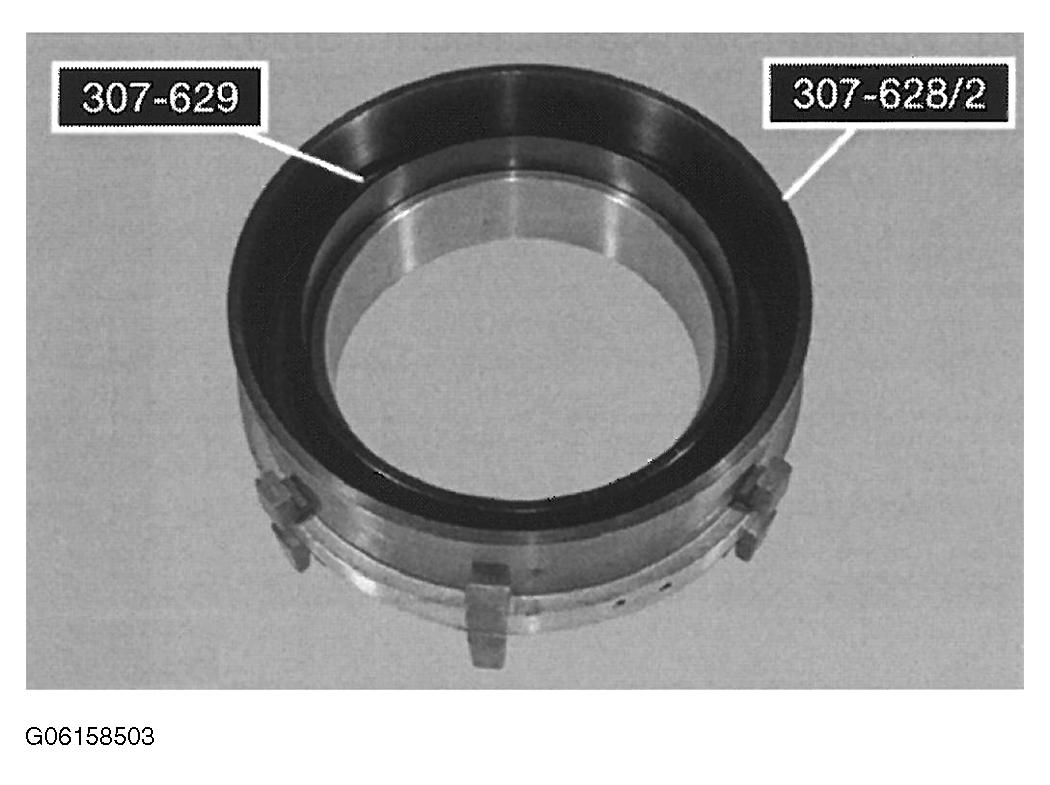

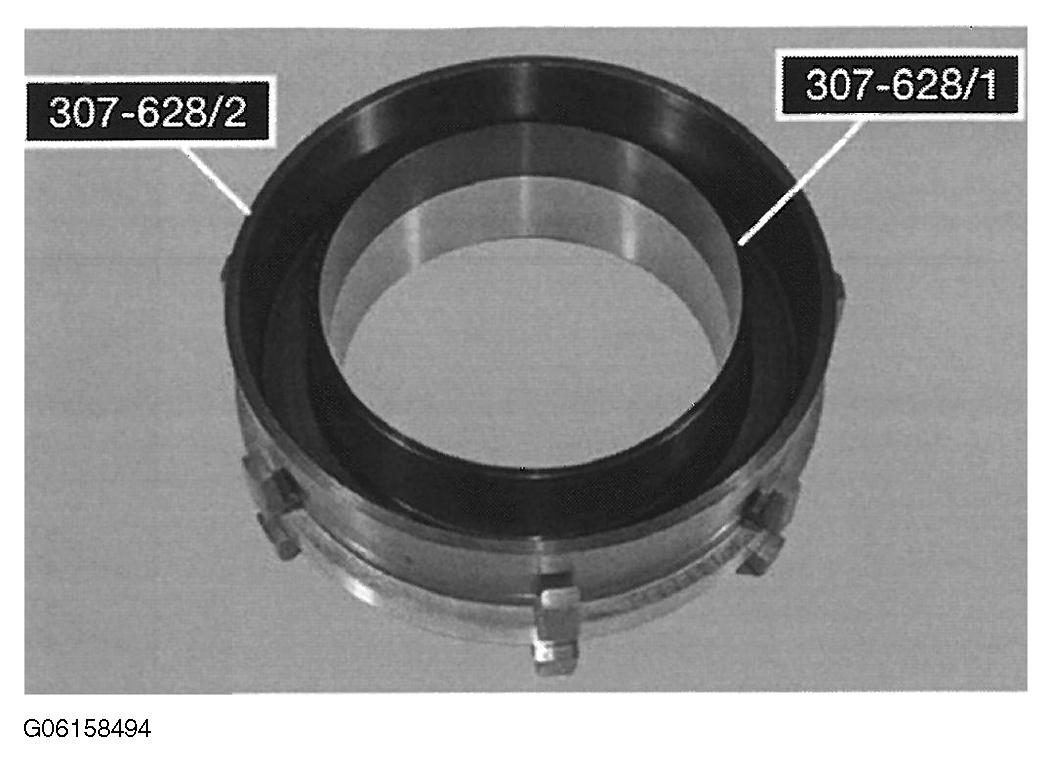

Turn the center support over and install the Seal Protector and the Seal Protector on the center support.

Fig 10: View Of Installing Seal Protector And Seal Protector On Center Support
Courtesy of MAZDA MOTORS CORP.
Lubricate the sealing surfaces of the forward (1, 2, 3, 4) clutch piston with petroleum jelly.

Fig 11: Identifying Sealing Surfaces Of Forward (1, 2, 3, 4) Clutch Piston
Courtesy of MAZDA MOTORS CORP.

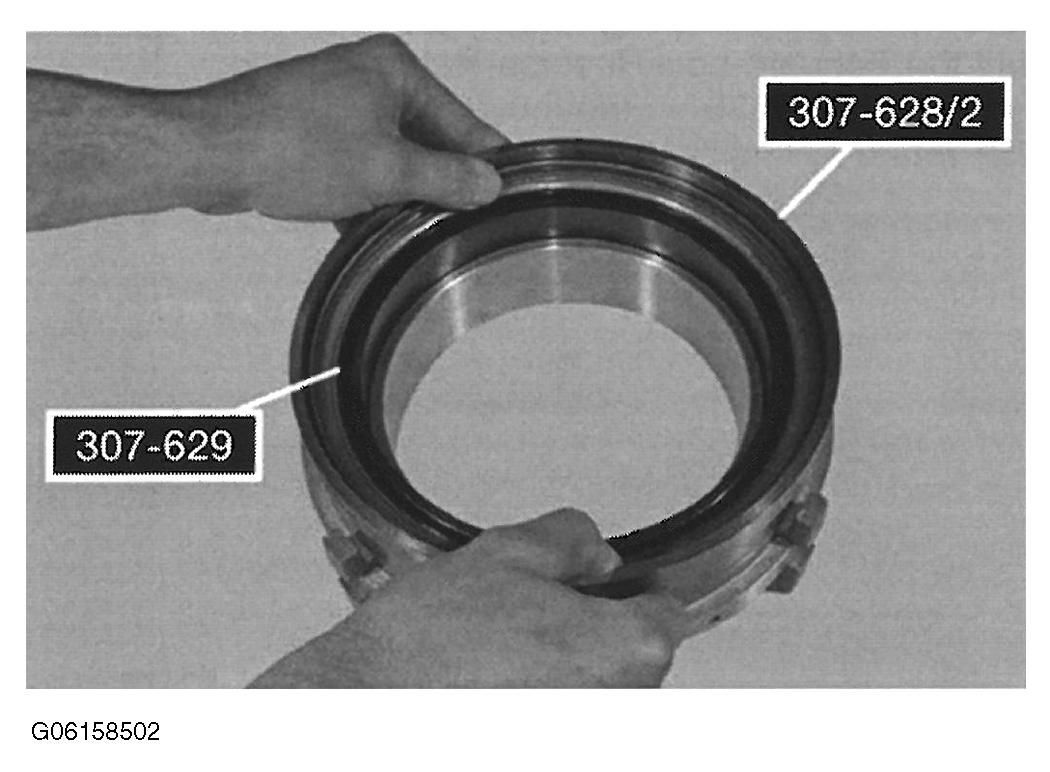

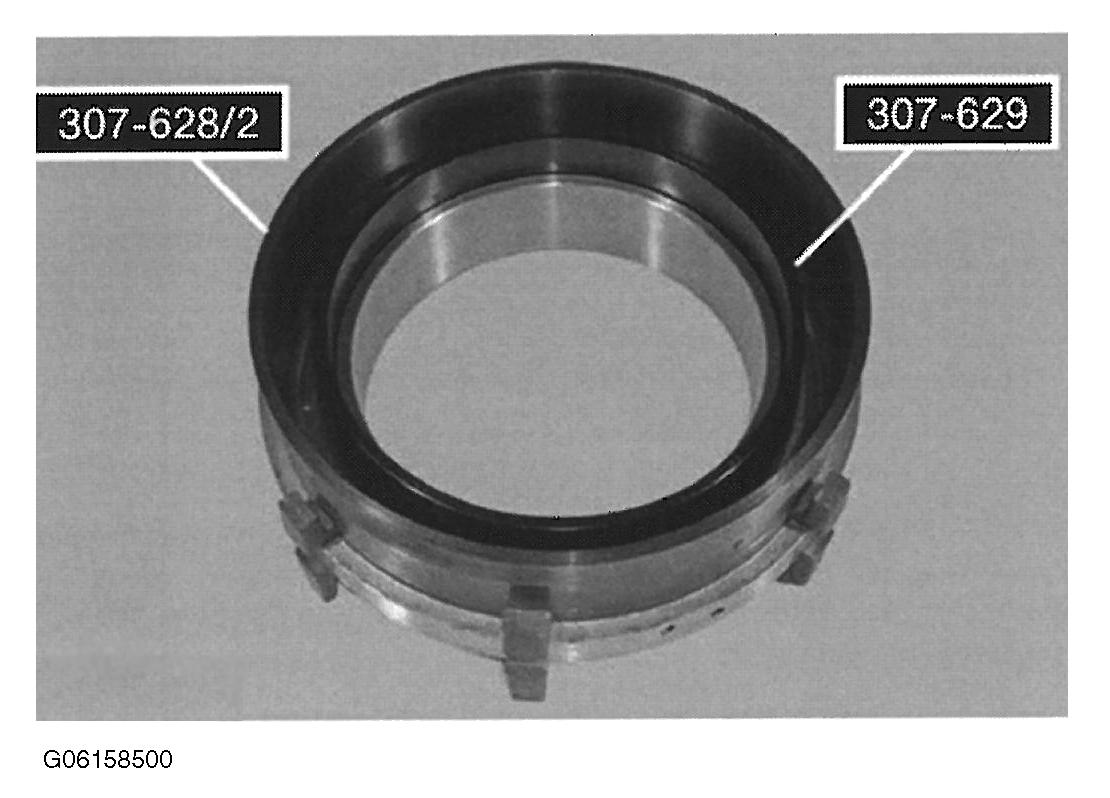

Position the forward (1, 2, 3, 4) clutch piston on Seal Protector 307-628/2 and Seal Protector 307-629 and push it down into the center support.

Fig 12: Positioning Forward (1, 2, 3, 4) Clutch Piston On Seal Protector
Courtesy of MAZDA MOTORS CORP.
Remove the Seal Protector and the Seal Protector.

Fig 13: Removing Seal Protector And Seal Protector
Courtesy of MAZDA MOTORS CORP.
Install the forward (1, 2, 3, 4) clutch piston return spring.

Fig 14: Using Special Tool To Install Forward (1, 2, 3, 4) Clutch Piston Return Spring
Courtesy of MAZDA MOTORS CORP.

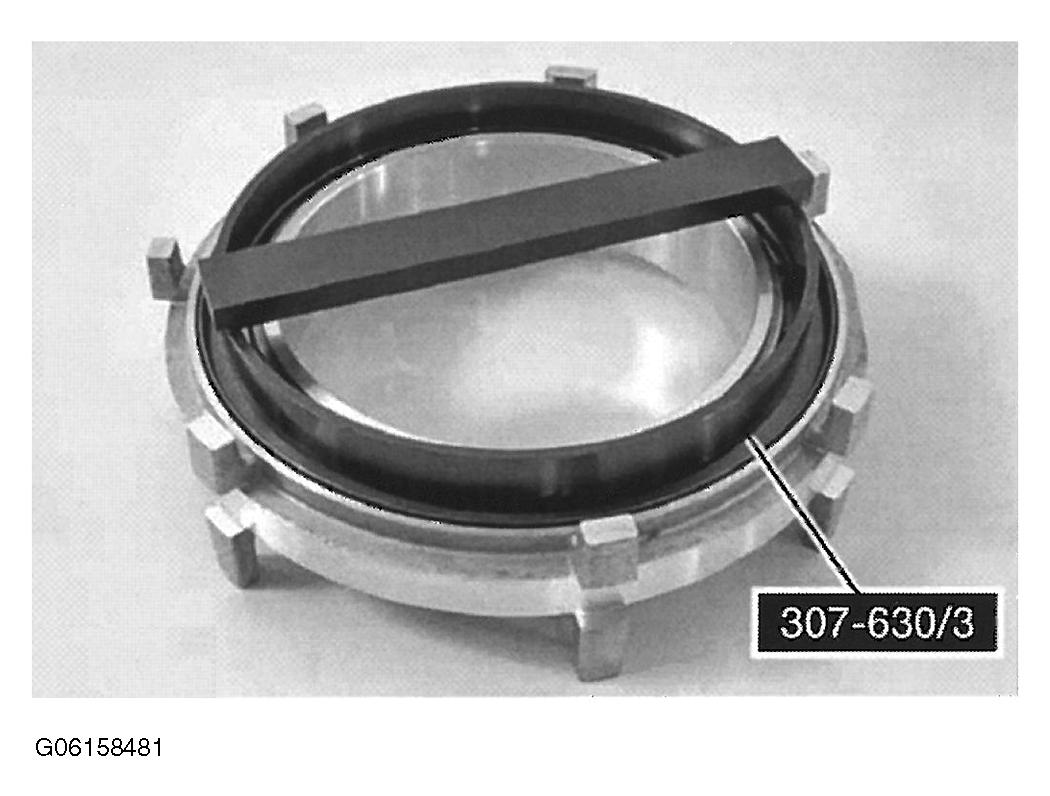

Install the Forward-Low/Reverse Return Spring Compressor 307-630 on the forward (1, 2, 3, 4) clutch return spring.

Fig 15: Identifying Forward-Low/Reverse Return Spring Compressor On Forward (1, 2, 3, 4) Clutch Return Spring
Courtesy of MAZDA MOTORS CORP.

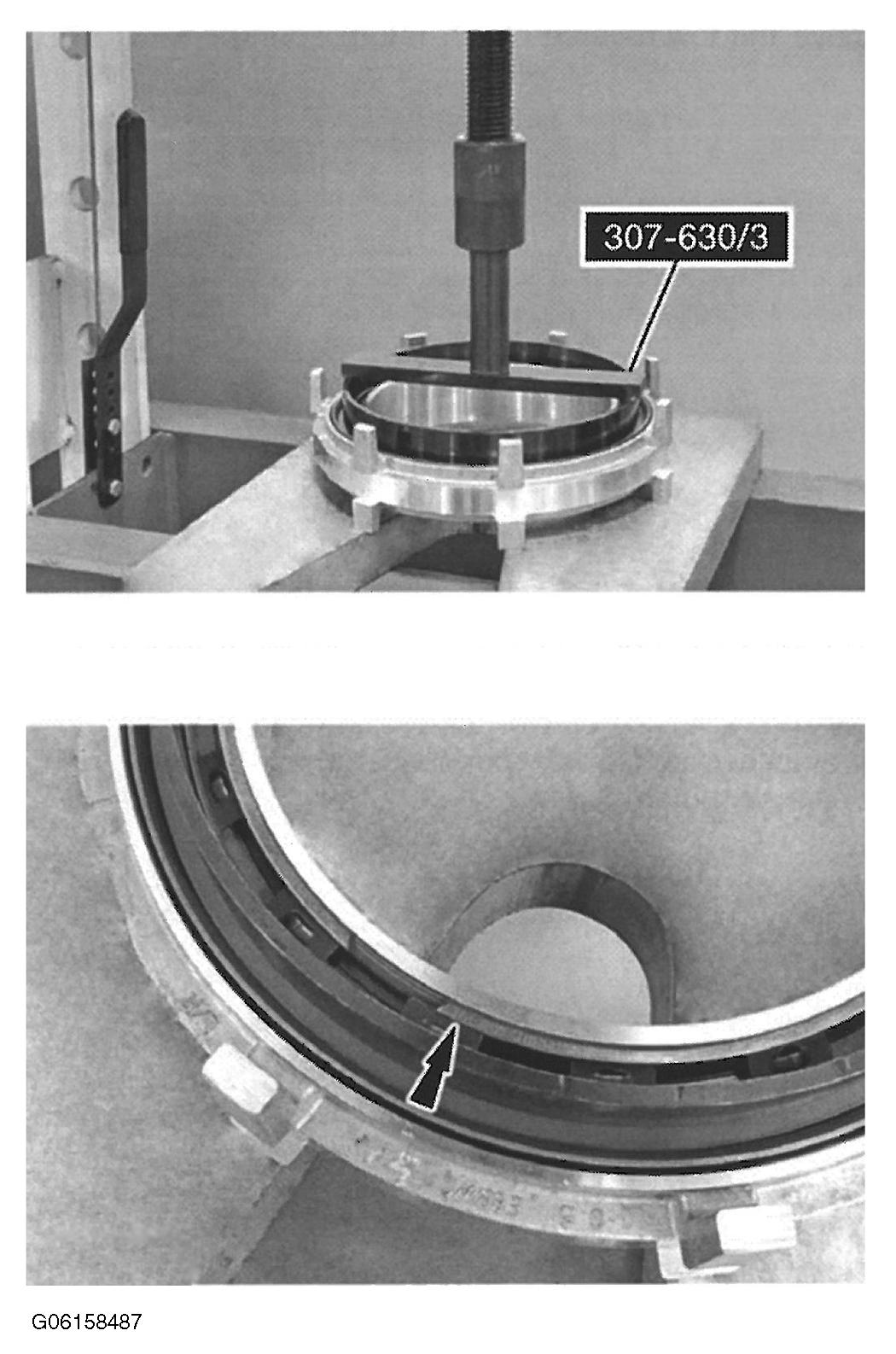

Using Forward-Low/Reverse Return Spring Compressor 307-630 and a press, compress the forward (1, 2, 3, 4) clutch return spring and install the snap ring.

Fig 16: Compressing Forward (1, 2, 3, 4) Clutch Return Spring
Courtesy of MAZDA MOTORS CORP.
Remove Forward-Low/Reverse Return Spring Compressor 307-630.

Fig 17: Identifying Forward-Low/Reverse Return Spring Compressor On Forward (1, 2, 3, 4) Clutch Return Spring
Courtesy of MAZDA MOTORS CORP.
Inspect the snap ring to be sure it is seated in the groove on the center support.

Fig 18: Inspecting Snap Ring
