Stability/Traction Control Switch Removal/Installation

  1. Remove the lower instrument cluster center finish panel. See INSTRUMENT PANEL CENTER FINISH PANEL - LOWER REMOVAL/INSTALLATION .
  2. Depress the 2 tabs and remove the stability/traction control switch assembly.

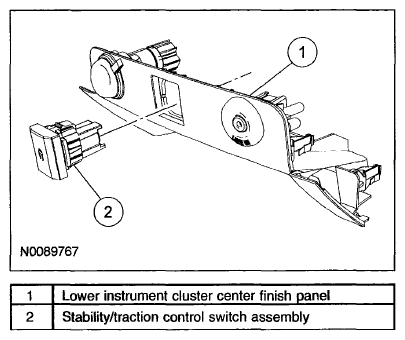

    Fig 1: Identifying Stability And Traction Control Switch
    G06157583Courtesy of MAZDA MOTORS CORP.
  3. To install, reverse the removal procedure.
    Fig 2: Locating Tabs
    G06157584Courtesy of MAZDA MOTORS CORP.
