Manifold Absolute Pressure (Map) Sensor Removal/Installation - 2.5L

WARNING: This page is about a different variant/trim than selected.

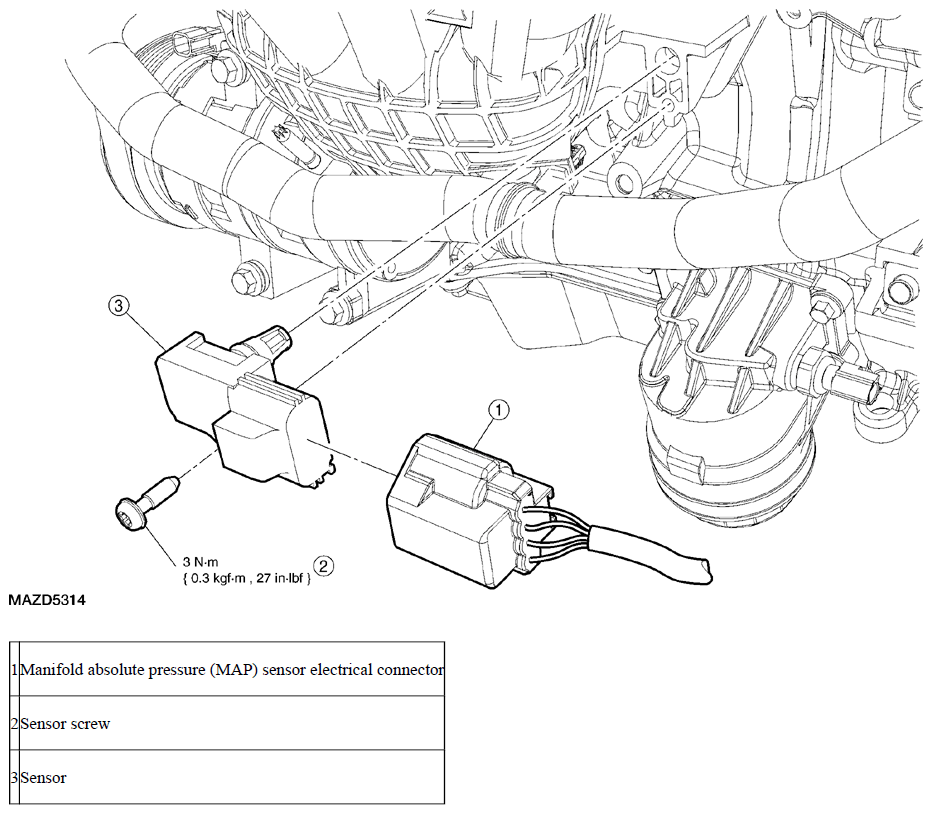

Fig 1: Manifold Absolute Pressure Sensor Removal/Installation With Torque Specifications -- 2.5L

Courtesy of MAZDA MOTORS CORP.

With the vehicle in NEUTRAL, position it on a hoist. See LIFTING .
Disconnect the MAP electrical connector.
Using a tool like KD Tool #58181 or Lisle T25 Torx Bit, remove the screw and the MAP sensor.
- To install, tighten to 3 N.m (0.3 kgf.m, 27 in.lbf).
To install, reverse the removal procedure.
NOTE: Lubricate the MAP sensor O-ring seal with clean engine oil.
