Knock Sensor (KS) Removal/Installation - 3.0L: Notes

WARNING: This page is about a different variant/trim than selected.

Cylinder Head-Mounted Knock Sensor (KS)

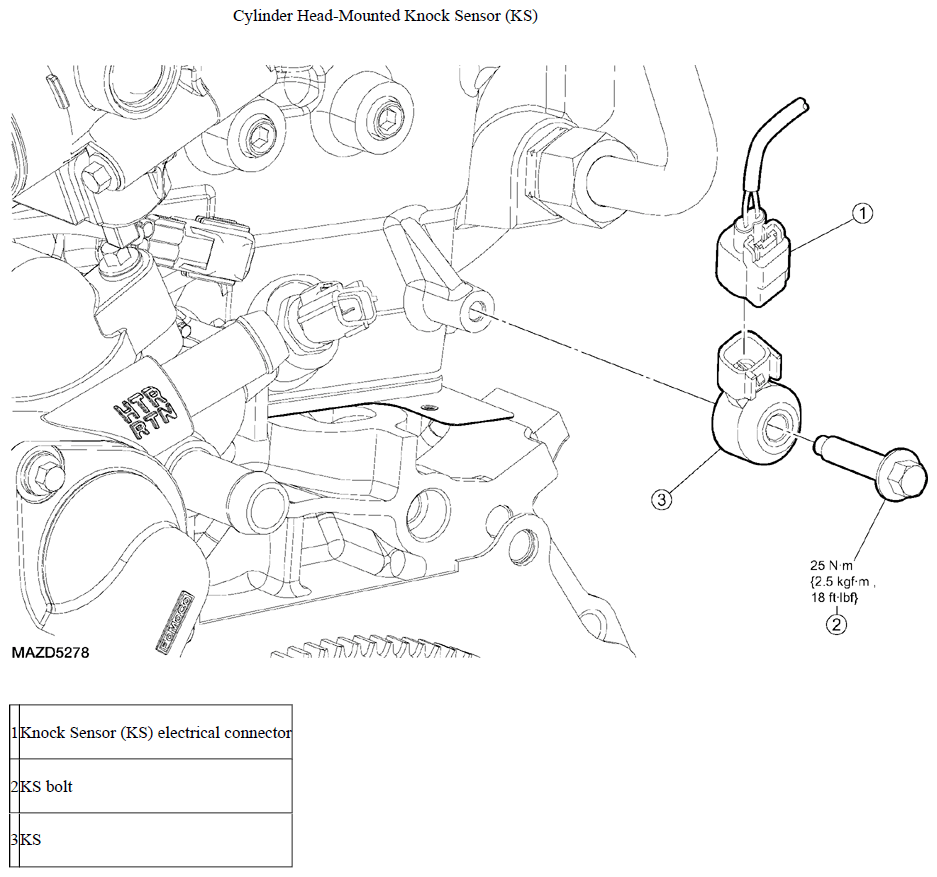

Fig 1: Cylinder Head-Mounted Knock Sensor Removal/Installation With Torque Specifications -- 3.0L

Courtesy of MAZDA MOTORS CORP.

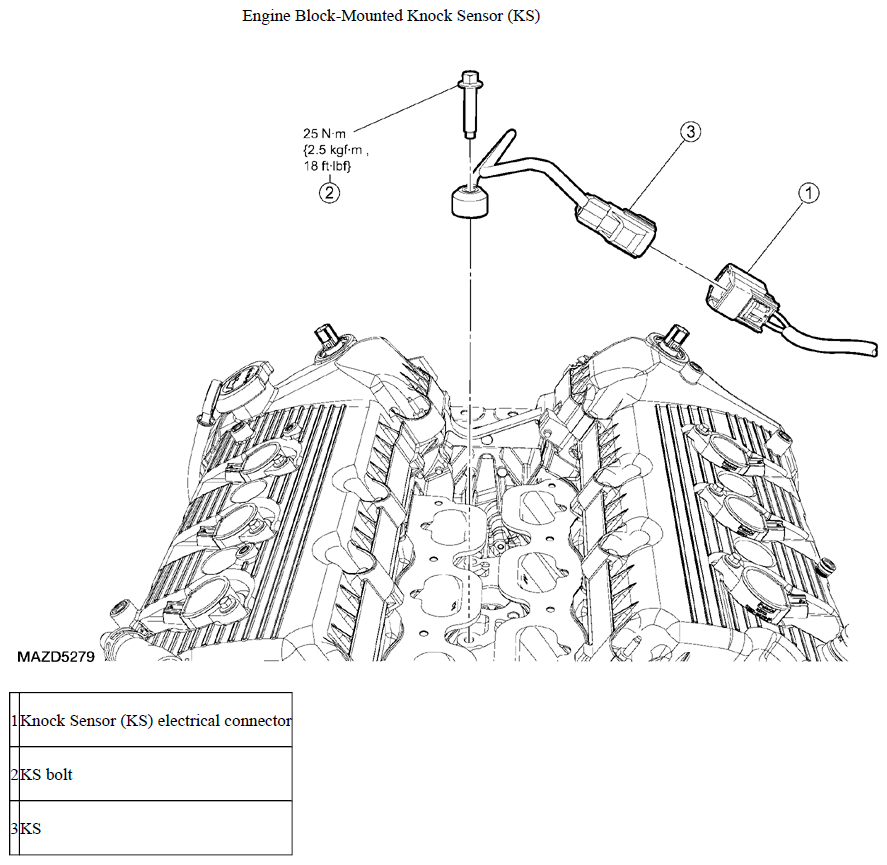

Fig 2: Engine Block-Mounted Knock Sensor Removal/Installation With Torque Specifications -- 3.0L

Courtesy of MAZDA MOTORS CORP.
