Variable Camshaft Timing (VCT) Oil Control Solenoid - 2.5L Removal/Installation

  1. Remove the valve cover. See VALVE COVER REMOVAL/INSTALLATION - 2.5L .
  2. Remove the bolt and the Variable Camshaft Timing (VCT) oil control solenoid.
    • To install, tighten to 10 N.m {1.0 kgf.m, 89 in.lbf}.
  3. To install, reverse the removal procedure.

    Variable Camshaft Timing (VCT) Oil Control Solenoid - 2.5L

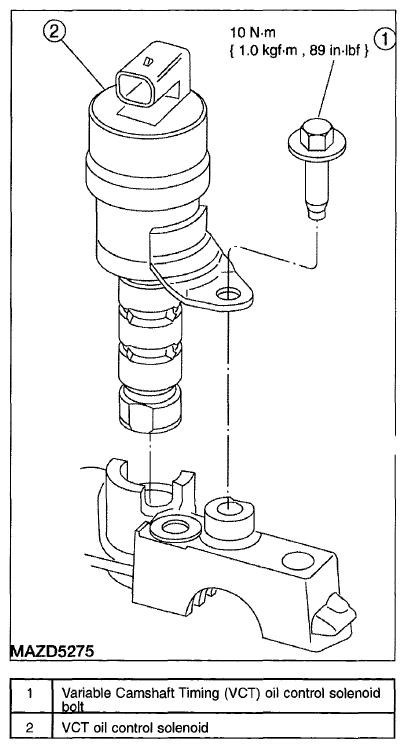

    Fig 1: Identifying Variable Camshaft Timing Oil Control Solenoid Removal/Installation - 2.5L
    G06157226Courtesy of MAZDA MOTORS CORP.
