Crankshaft Position (CKP) Sensor Removal/Installation - 2.5L: Removal

With the vehicle in NEUTRAL, position on a hoist. See LIFTING .
Remove the 5 bolts and the RH splash shield.

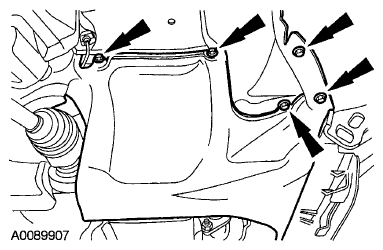

Fig 1: Locating Bolts And RH Splash Shield
Courtesy of MAZDA MOTORS CORP.
Remove the engine plug bolt.

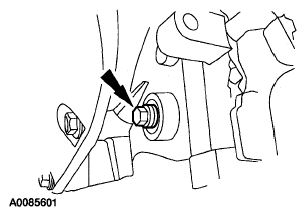

Fig 2: Locating Engine Plug Bolt
Courtesy of MAZDA MOTORS CORP.
Turn the crankshaft pulley bolt to position the number one cylinder at top dead center (TDC) and install the special tool.

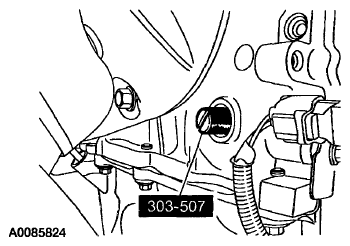

Fig 3: Identifying Special Tool 303-507
Courtesy of MAZDA MOTORS CORP.
Disconnect the crankshaft position (CKP) sensor electrical connector.
Remove the bolts and the CKP sensor.
