Engine Ignition Components - Exploded View

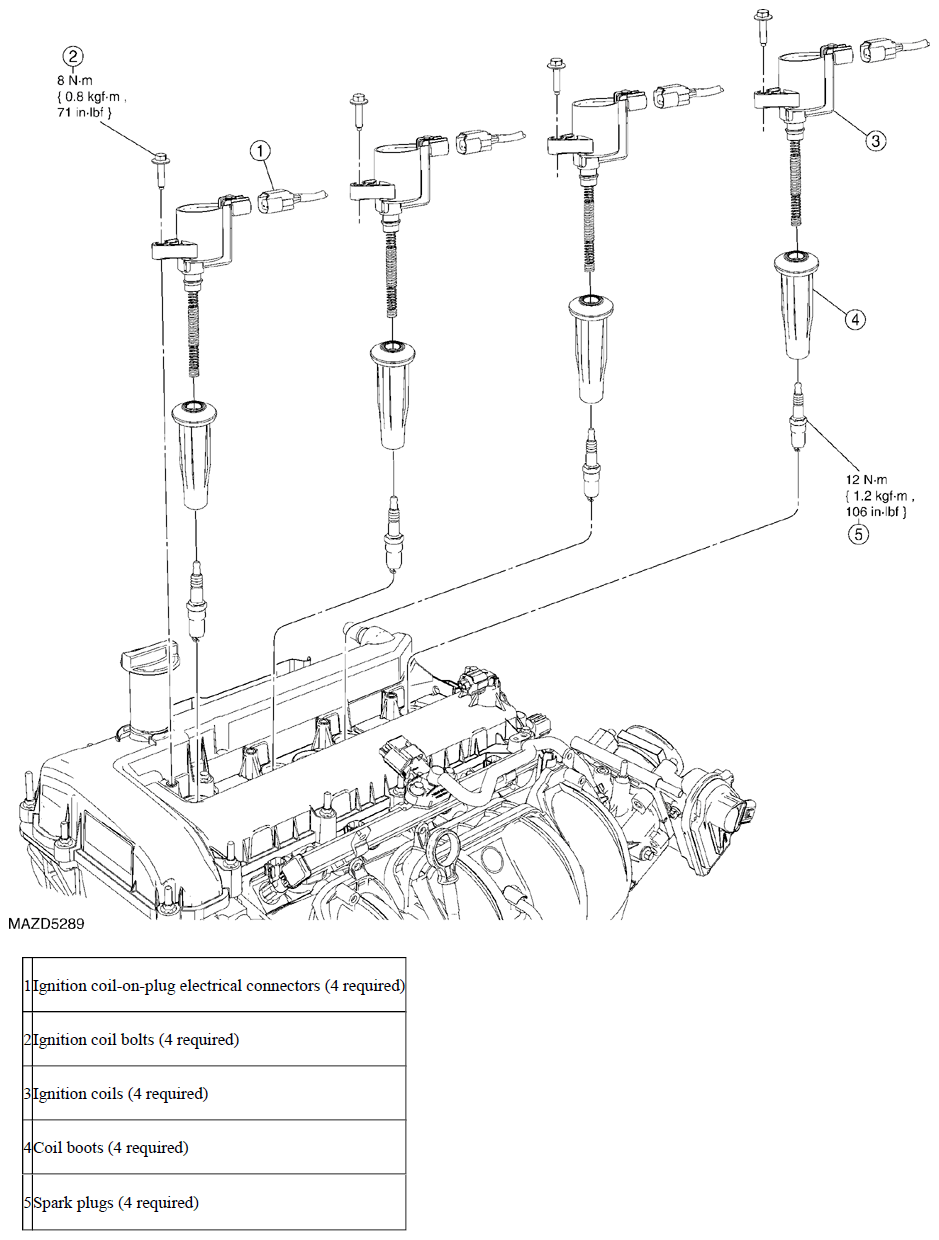

Fig 1: Exploded View Of Engine Ignition Components

Courtesy of MAZDA MOTORS CORP.

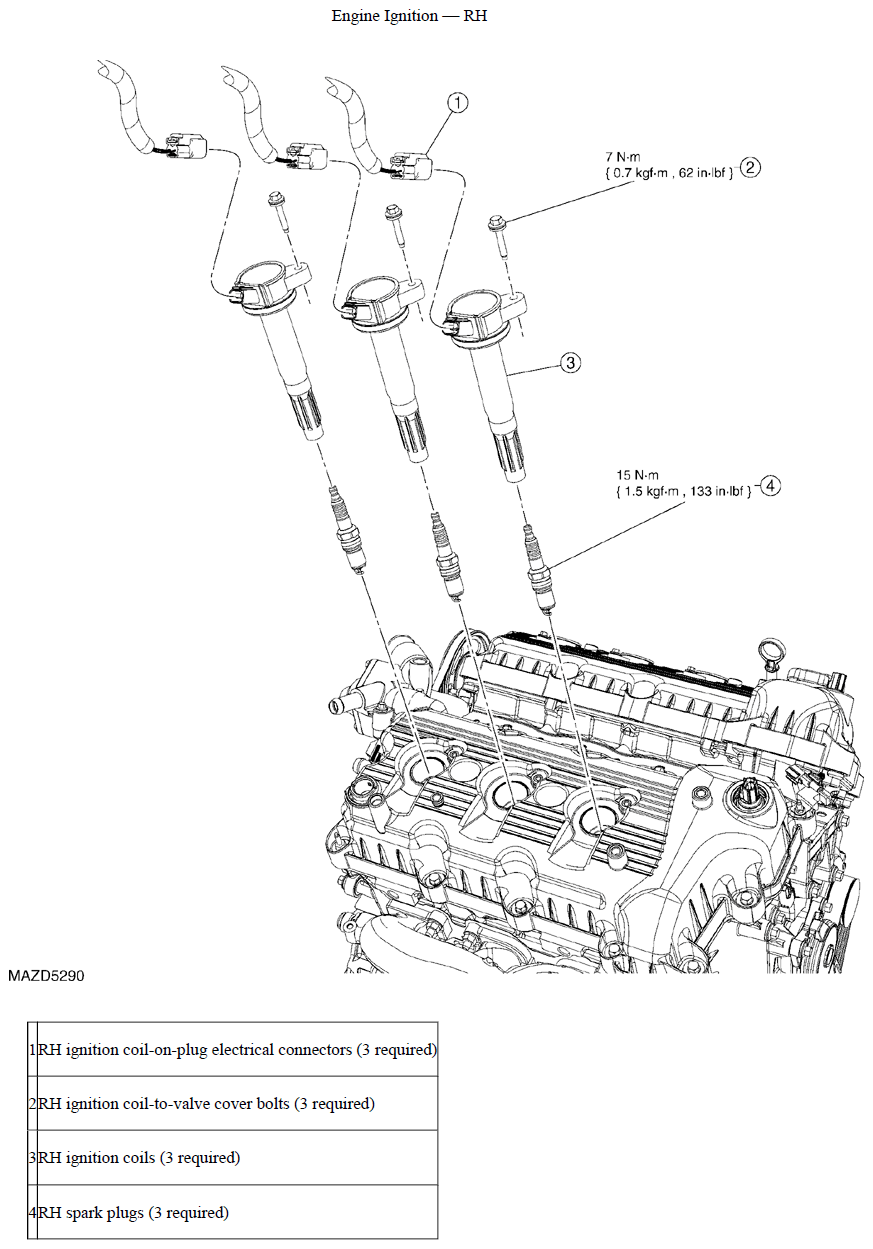

Fig 2: Identifying Engine Ignition - RH

Courtesy of MAZDA MOTORS CORP.

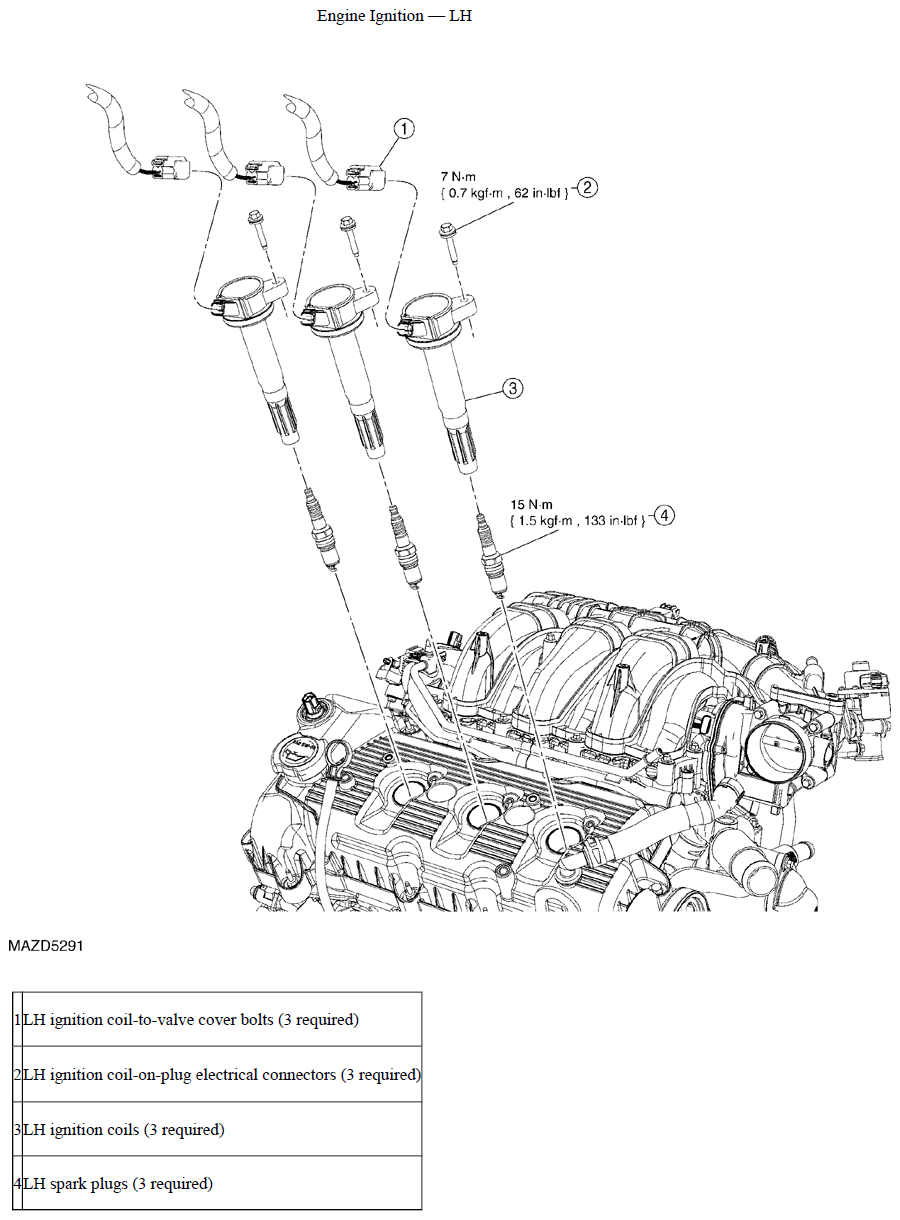

Fig 3: Identifying Engine Ignition - LH

Courtesy of MAZDA MOTORS CORP.

1. For additional information, see the appropriate procedure(s).
