RX-8 Touring, 1.3 P, Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Symptom Troubleshooting [Advanced Keyless System)
>>
Keyless Entry System Wiring Diagram [Advanced Keyless And Start System]
Keyless Entry System Wiring Diagram [Advanced Keyless And Start System]

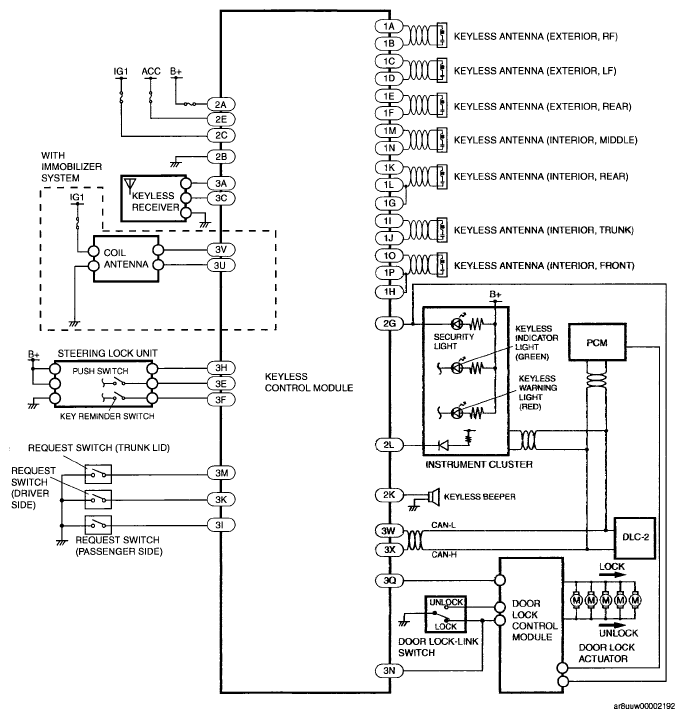

Fig 1: Keyless Entry System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
