Selector Lever Component Inspection

  1. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [13B-MSP] .)
  2. Remove the battery cover.
  3. Disconnect the negative battery cable.
  4. Remove the ashtray. (See CONSOLE REMOVAL/INSTALLATION .)
  5. Remove the shift knob. (See SELECTOR LEVER REMOVAL/INSTALLATION .)
  6. Remove the console panel and indicator assembly. (See SELECTOR LEVER REMOVAL/INSTALLATION .)
  7. Disconnect the selector lever component connector.
  8. Verify continuity as indicated in the table.

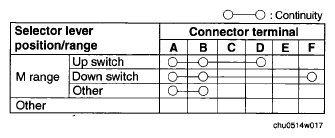

Fig 1: Selector Lever Continuity Chart
G05985298Courtesy of MAZDA MOTORS CORP.
Fig 2: Identifying Selector Lever Connector Terminals
G05985299Courtesy of MAZDA MOTORS CORP.
