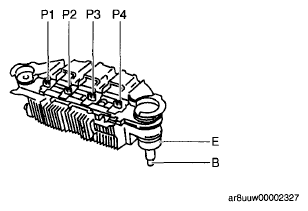

Generator Inner Parts: Rectifier

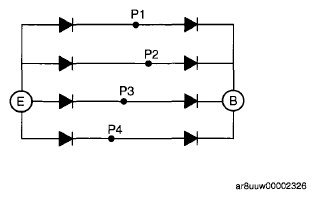

- Inspect for continuity of the diodes using a tester.
Courtesy of ABLE BODY CORP.
- If not as specified, replace the rectifier.
Specification
CONTINUITY SPECIFICATION
| Tester |
Continuity |
| Negative |
Positive |
| E |
P1, P2, P3, P4 |
Yes |
| B |
No |
| P1, P2, P3, P4 |
E |
No |
| B |
Yes |
