Battery Box Removal Note

  1. Lightly press the battery box from inside to outside to detach it from the battery tray tabs.
  2. Remove the battery box.

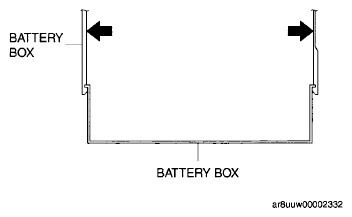

Fig 1: Locating Battery Tray Tabs
G05981071Courtesy of ABLE BODY CORP.
