Home >> Mazda >> 2009 >> RX-8 Touring, 1.3 M, Automatic >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Security System And Locks System >> Keyless Antenna Removal/Installation >> Interior, Front

Interior, Front

  1. Disconnect the negative battery cable.
  2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  3. Disconnect the connector, then remove the screws.
  4. Remove the keyless antenna.
  5. Install in the reverse order of removal.

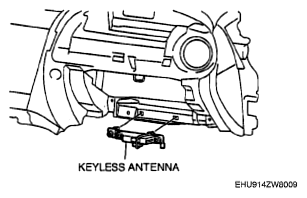

    Fig 1: Identifying Keyless Antenna
    G04928910Courtesy of MAZDA MOTORS CORP.
