Boot Band Assembly Note

Crimp the boot band using the SST.
Verify that the crimping clearance A is within the specification.
- If crimping clearance A exceeds the specification, reduce SST clearance, and crimp the boot band again.
- If crimping clearance A is less than the specification, increase SST clearance, and crimp a new boot band.
Standard clearance A 2-3 mm {0.08-0.11 in}

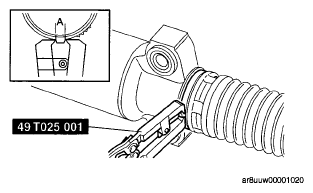

Fig 1: Crimping Boot Band
Courtesy of MAZDA MOTORS CORP.
Rotate the boot by hand and verify that it is securely installed to the boot band.
