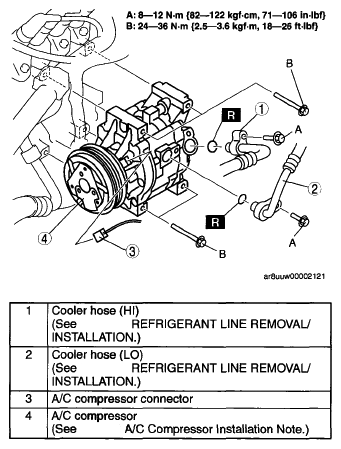

A/C Compressor Removal/Installation: Notes
WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Discharge the refrigerant from the system. (See REFRIGERANT CHARGING .)
- Remove the fresh-air duct and air cleaner. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [13B-MSP] .)
- Remove the drive belt. (See DRIVE BELT REPLACEMENT [13B-MSP] .)
- Do not allow remaining compressor oil in the A/C compressor and pipes to spill, and remove in the order indicated in the table.CAUTION:
- If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise or other malfunction could occur. Always plug open fittings immediately after removing any refrigeration cycle parts.
- Install in the reverse order of removal.
- Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST .)
