Brake Switch Installation Note
WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

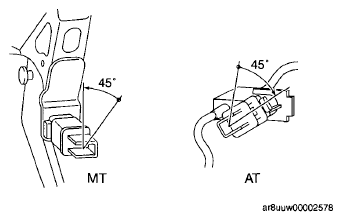

- Install the new brake switch to the brake pedal (MT) or the interlock cable (AT), and secure it by turning it clockwise 45° (AT) or counterclockwise 45° (MT.)
Courtesy of MAZDA MOTORS CORP.
