Clearance Inspection

Verify the clearance between the rear ABS sensor rotor and the rear ABS wheel-speed sensor.
- If there is any malfunction, check for improper installation, and replace if necessary.
  Clearance

  0.3-1.1 mm {0.012-0.043 in}

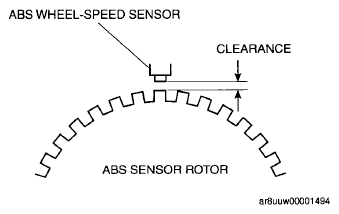

  Fig 1: Checking Clearance Between Rear ABS Sensor Rotor And Rear ABS Wheel-Speed Sensor
  Courtesy of MAZDA MOTORS CORP.
