Interior, Trunk

  1. Disconnect the negative battery cable.
  2. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  3. Remove the nuts.
  4. Disconnect the connector, then remove the keyless antenna.
  5. Install in the reverse order of removal.

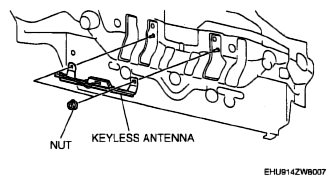

Fig 1: Identifying Keyless Antenna And Nut (Trunk)
G04928913Courtesy of MAZDA MOTORS CORP.
