License Plate Light Removal/Installation
WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the following parts:
- Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
- Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
- Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
- Request switch (Vehicles with the advanced keyless system) (See REQUEST SWITCH REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS SYSTEM] .)
- Detach the license plate light from the rear bumper.
- Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION .)

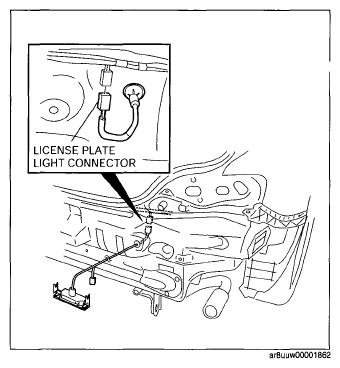

- Disconnect the license plate light connector and remove the license plate light.
- Install in the reverse order of removal.
