Front Fog Light Bulb Removal/Installation

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the front fog light. (See FRONT FOG LIGHT REMOVAL/INSTALLATION .)
Disconnect the connector.

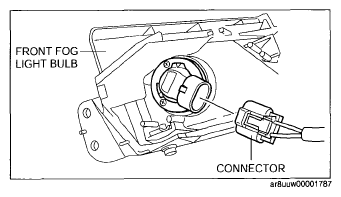

Fig 1: Identifying Front Fog Light Bulb And Connector
Courtesy of MAZDA MOTORS CORP.
Remove the front fog light bulb by turning it in the direction of the arrow.
CAUTION:
- A halogen bulb generates extremely high heat when it is illuminated. If the surface of the bulb is soiled, excessive heat will build up and the life of the bulb will be shortened. When handling the bulb, hold the flange, not the glass.
Install in the reverse order of removal.

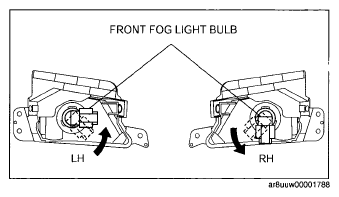

Fig 2: Removing Front Fog Light Bulb

Courtesy of MAZDA MOTORS CORP.
