Auto Light Illumination Level Setting

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the M-MDS to the DLC-2 connector.
  2. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.
    • When using the IDS (laptop PC)
    1. Select "Module Programming".
    • When using the PDS (Pocket PC)
    1. Select "Programming".
    2. Select "Module Programming".
  3. Then, select items from the screen menu in the following order.
    1. Select "Programmable Parameters".
    2. Select "Exterior Lighting".
  4. Select "Low (Other)" or "Standard (Other)" on the M-MDS to set the illumination level.

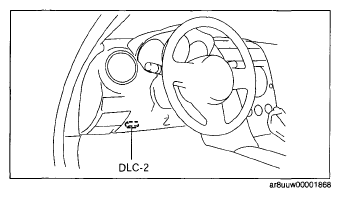

Fig 1: Identifying DLC-2 Connector
G05986229Courtesy of MAZDA MOTORS CORP.
NOTE:
  • When the M-MDS is set to Low (Other), the auto-light sensor sensitivity decreases, and the TNS and headlight illumination timing is slower.
