Interior, Middle

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)
  3. Remove the clips.
  4. Disconnect the connector, then remove the keyless antenna.
  5. Install in the reverse order of removal.

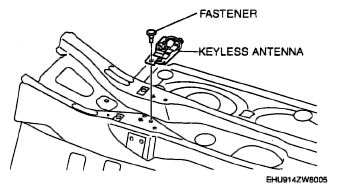

Fig 1: Identifying Fastener And Keyless Antenna (Middle)
G04928911Courtesy of MAZDA MOTORS CORP.
