Accessory Socket Inspection

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the hole cover. (See CONSOLE REMOVAL/INSTALLATION .)
  3. Connect a tester as shown in the figure and verify that there is continuity.
    • If the continuity cannot be verified, replace the accessory socket.

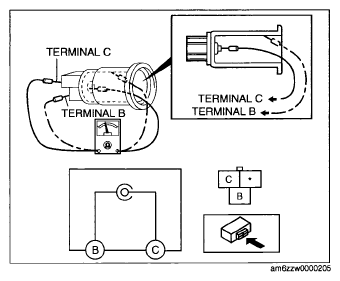

    Fig 1: Identifying Accessory Socket Terminals
    G05986349Courtesy of MAZDA MOTORS CORP.
