Fuel Injector Removal/Installation [13B-MSP]: Notes

1. Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION [13B-MSP] .)
2. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [13B-MSP] .)
3. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [13B-MSP] .)
4. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [13B-MSP] .)
5. Remove the extension manifold (upper and lower.) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [13B-MSP] .)
6. Remove the oil filler pipe. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [13B-MSP] .)
7. Remove the metering oil pump (No. 1, No. 2.) (See METERING OIL PUMP REMOVAL/INSTALLATION [13B-MSP] .)
8. Remove the metering oil pump bracket (No. 1, No. 2.) (See METERING OIL PUMP BRACKET INSTALLATION NOTE .)
9. Remove in the order indicated in the table.
10. Install in the reverse order of removal.
11. Perform the VDI operation inspection. (See VARIABLE DYNAMIC EFFECT INTAKE-AIR (VDI) SOLENOID VALVE INSPECTION [13B-MSP] .)
12. Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION [13B-MSP] .)

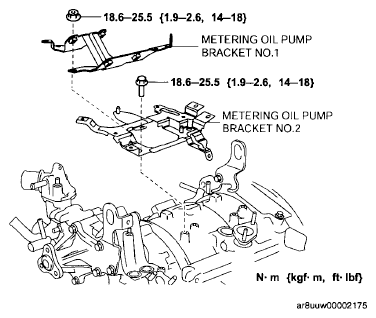

Fig 1: Metering Oil Pump Bracket Replacement Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

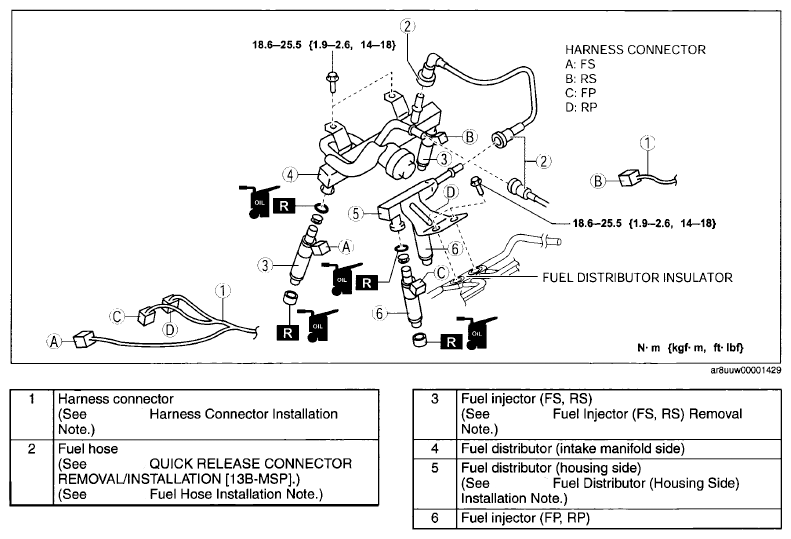

Fig 2: Fuel Injector Replacement Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
