Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [13B-MSP] .)
  2. Inspect the following wiring harnesses for open or short (continuity check.)

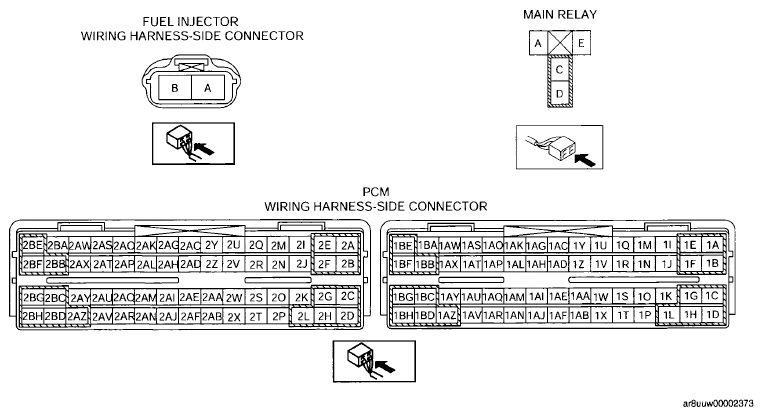

Fig 1: Identifying PCM, Fuel Injector And Main Relay Connector Terminals
G05981013Courtesy of MAZDA MOTORS CORP.
