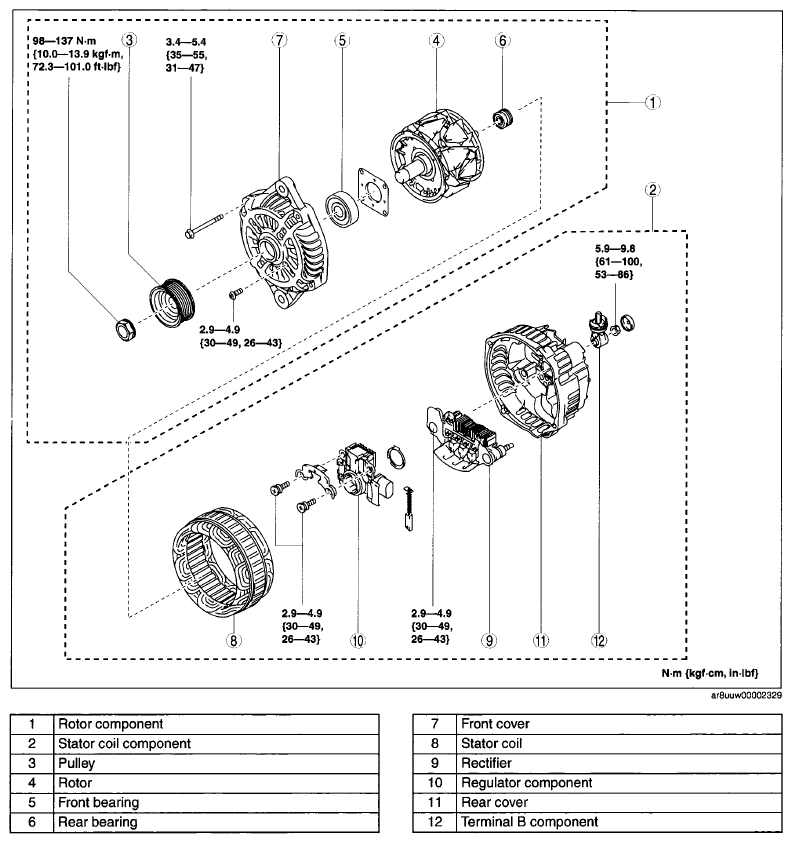

Generator Disassembly/Assembly [13B-MSP]
CAUTION:
- Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.
- Disassemble in the order indicated in the table.
- Assemble in the reverse order of disassembly.
Courtesy of ABLE BODY CORP.
