Front Abs Wheel-Speed Sensor Removal/Installation

  1. Slightly bend back the front mudguard. (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

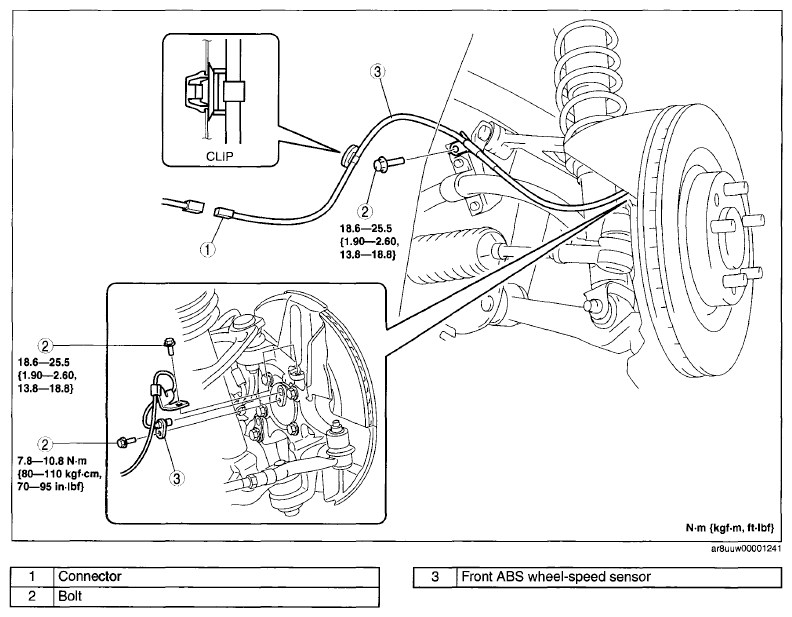

Fig 1: Front ABS Wheel-Speed Sensor Removal/Installation Component With Torque Specification
G05985209Courtesy of MAZDA MOTORS CORP.
