Abs HU/Cm Removal/Installation: Notes

CAUTION:

• The internal parts of the ABS HU/CM could be damaged if dropped. Be careful not to drop the ABS HU/CM. Replace the ABS HU/CM if it is subjected to an impact.

1. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [13B-MSP] .)
2. Remove the front suspension tower bar. (See FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION [MT] .) (See FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION [AT] .)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

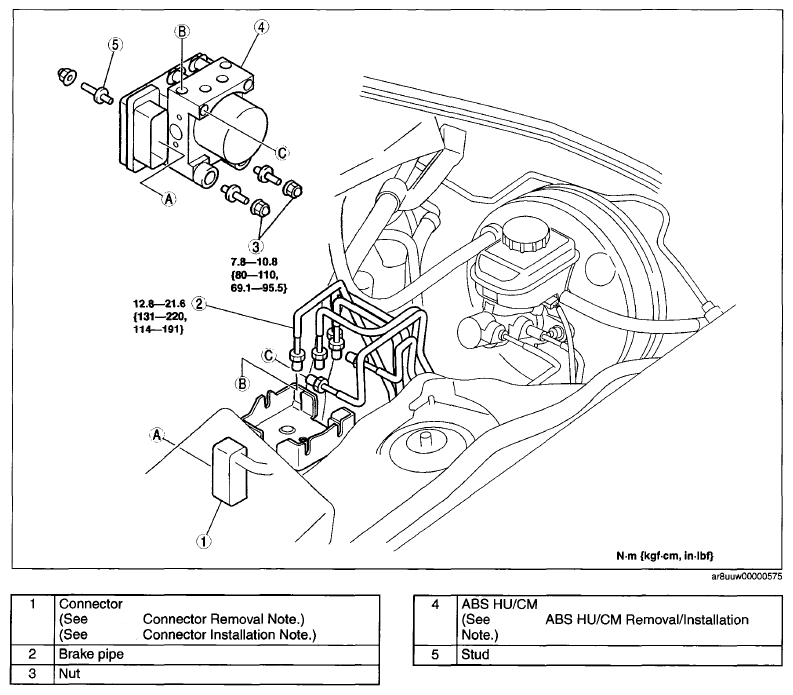

Fig 1: Identifying ABS HU/CM Removal/Installation Components

Courtesy of MAZDA MOTORS CORP.
