Rear Window Glass Removal: Notes

  1. Remove the following parts:
    1. Rear seat (See REAR SEAT REMOVAL/INSTALLATION .)
    2. Inner scuff plate (See INNER SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    4. Rear pillar trim (See REAR PILLAR TRIM REMOVAL/INSTALLATION .)
    5. Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)
  2. Remove the nut.
  3. Disconnect the AM/FM antenna and the filament connectors.
  4. Apply protective tape along the edge of the body.

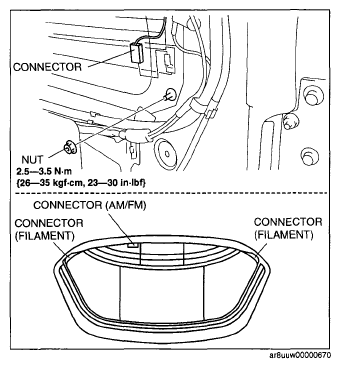

    Fig 1: Identifying AM/FM And Filament Connectors
    G05985838Courtesy of MAZDA MOTORS CORP.
  5. Cut the rear window molding lip using a razor.
Fig 2: Identifying Rear Window Molding Lip
G05985839Courtesy of MAZDA MOTORS CORP.
