Outer Mirror Glass Assembly Note

  1. Press area A of the mirror glass into the base to attach pin A.
  2. Press areas B of the mirror glass into the base to attach pins B.

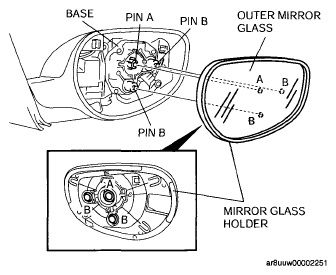

Fig 1: Identifying Mirror Glass Holder And Outer Mirror Glass
G05985865Courtesy of MAZDA MOTORS CORP.
