Slide Motor Inspection

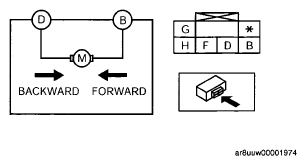

- Connect battery positive voltage to slide motor terminal B or D, then verify that the slide motor operate as shown in the table.
- If the slide motor does not operate as indicated in the table, replace the slide motor.
MOTOR OPERATION CHART
| Motor operation |
Connection |
| B+ |
GND |
| Forward |
B |
D |
| Backward |
D |
B |
Courtesy of MAZDA MOTORS CORP.
