Power Seat Switch Inspection

  1. Disconnect the power seat switch connector.
  2. Verify that the continuity between the power seat switch terminals is as indicated in the table.
    • If not as indicated in the table, replace the power seat switch.

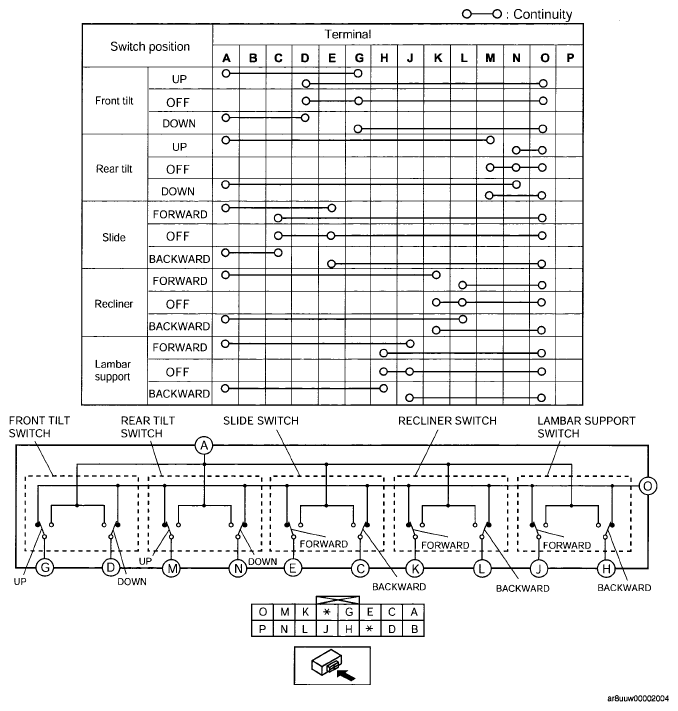

    Fig 1: Power Seat Switch Continuity Chart
    G05985938Courtesy of MAZDA MOTORS CORP.
