Lumbar Support Motor Inspection

  1. Connect battery positive voltage to lumbar support motor terminal A or B, then verify that the lumbar support motor operate as shown in the table.
    • If the lumbar support motor does not operate as indicated in the table, replace the lumbar support motor.
    MOTOR OPERATION CHART

    Motor operation Connection
    B+ GND
    Forward B A
    Backward A B

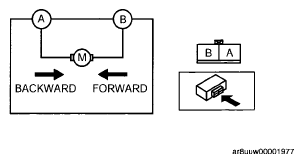

    Fig 1: Identifying Lumbar Support Motor Connector
    G05985937Courtesy of MAZDA MOTORS CORP.
