Monitoring System And Control System Device Relationship Chart [LF]
Monitoring System And Control System Device Relationship Chart [LF]

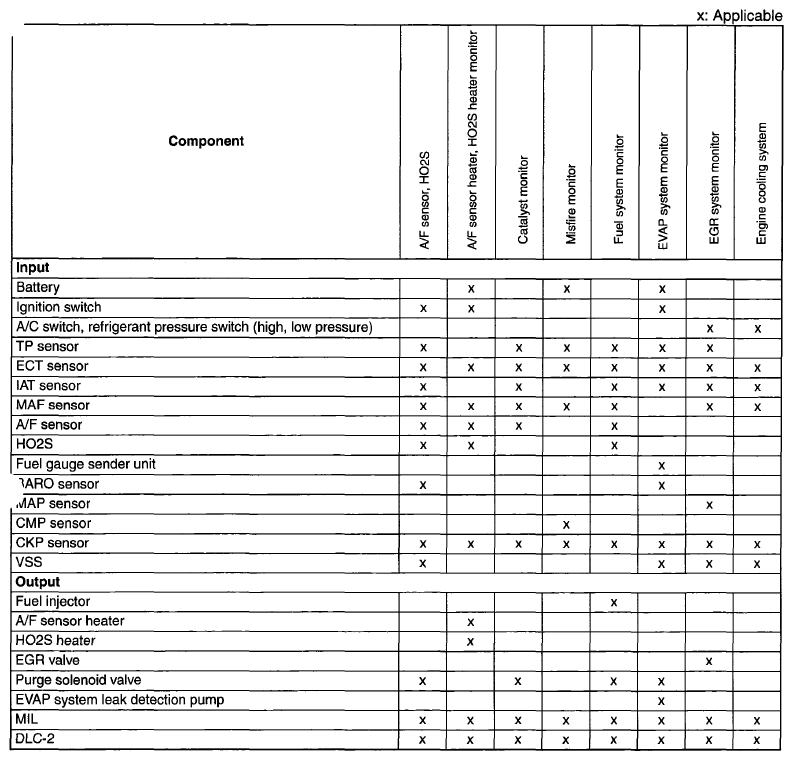

Fig 1: Monitoring System & Control System Device Relationship Chart (LF)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
