DTC P0118 [LF]: Notes

DTC P0118 (LF) DETECTION CONDITION AND POSSIBLE CAUSE

DTC P0118 ECT sensor circuit high input
DETECTION CONDITION
  • The PCM monitors the ECT sensor signal at PCM terminal 2AH. If the PCM detects the ECT sensor voltage is above 4.58 V  , the PCM determines that the ECT sensor circuit has malfunction.

Diagnostic support note
  • This is a continuous monitor (Engine cooling system).
  • The MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
  • FREEZE FRAME DATA (Mode 2/Mode 12) is available.
  • The DTC is stored in the PCM memory.
POSSIBLE CAUSE
  • ECT sensor connector or terminals malfunction
  • ECT sensor malfunction
  • PCM connector or terminals malfunction
  • Short to power supply in wiring harness between ECT sensor terminal A and PCM terminal 2AH
  • Open circuit in wiring harness between ECT sensor terminal A and PCM terminal 2AH
  • Open circuit in wiring harness between ECT sensor terminal B and PCM terminal 2AY
  • PCM malfunction

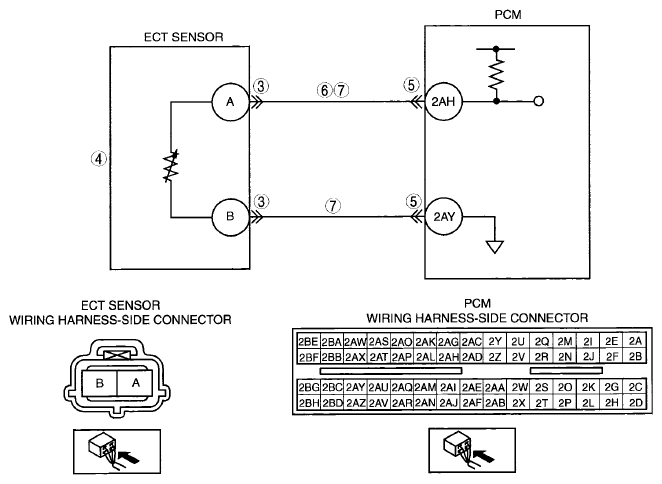

G06149966Courtesy of MAZDA MOTORS CORP.
