DTC P0107 [LF]: Notes
DTC P0107 (LF) DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P0107 |
MAP sensor circuit low input |
| DETECTION CONDITION |
- The PCM monitors the input voltage from the MAP sensor when intake air temperature is above -10°C {14°F}
. If the input voltage is below 0.1 V
, the PCM determines that the MAP sensor circuit has a malfunction.
MONITORING CONDITIONS
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
- FREEZE FRAME DATA (Mode 2/Mode 12) is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- MAP sensor connector or terminals malfunction
- MAP sensor malfunction

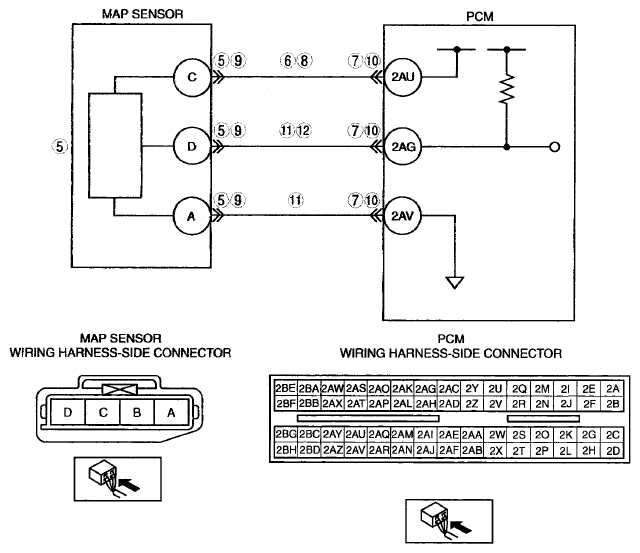

- Short to ground in wiring harness between MAP sensor terminal C and PCM terminal 2AU
- PCM connector or terminals malfunction
- Open circuit in wiring harness between MAP sensor terminal C and PCM terminal 2AU
- MAP sensor signal circuit and ground circuit are shorted to each other
- Short to ground in wiring harness between MAP sensor terminal D and PCM terminal 2AG
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
