DTC P0032 [LF]: Notes

DTC P0032 (LF) DETECTION CONDITION AND POSSIBLE CAUSE

DTC P0032 A/F sensor heater circuit high input
DETECTION CONDITION
  • The PCM monitors the A/F sensor heater control voltage when the PCM turns the A/F sensor heater off. If the control voltage exceeds 50% of the battery voltage, the PCM determines that the A/F sensor heater control circuit voltage is high.

Diagnostic support note
  • This is a continuous monitor (A/F sensor heater, HO2S heater).
  • The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM.
  • PENDING CODE is available if the PCM detects the above malfunction condition during the first drive cycle.
  • FREEZE FRAME DATA (Mode 2/Mode 12) is available.
  • The DTC is stored in the PCM memory.
POSSIBLE CAUSE
  • A/F sensor connector or terminals malfunction
  • A/F sensor heater malfunction
  • PCM connector or terminals malfunction
  • Short to power supply in wiring harness between A/F sensor terminal D and PCM terminal 2BG
  • PCM malfunction

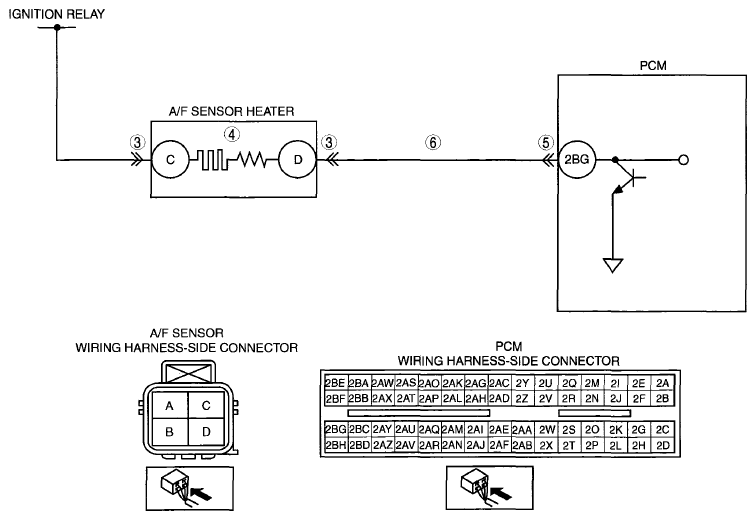

G06149956Courtesy of MAZDA MOTORS CORP.
