Circuit Open/Short Inspection: Notes

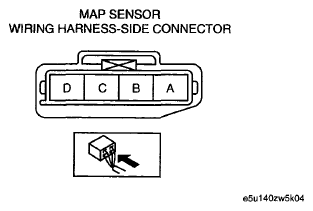

Fig 1: Identifying MAP Sensor Connector
G06151080Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [LF] )
  2. Inspect the following wiring harnesses for an open or short circuit. (Continuity Inspection)
Fig 2: Identifying PCM Connector
G06151072Courtesy of MAZDA MOTORS CORP.
