Circuit Open/Short Inspection: Notes

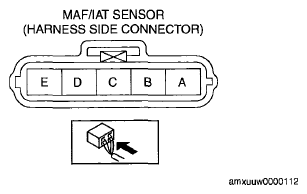

Fig 1: Identifying MAF/IAT Sensor Connector
G06151076Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [LF] )
  2. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)

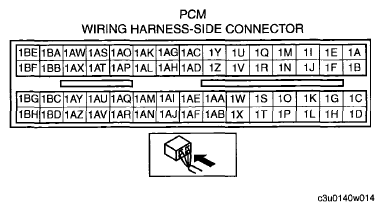

Fig 2: Identifying PCM Connector
G06151077Courtesy of MAZDA MOTORS CORP.
